One scanner. Many options.
The inEos X5 was developed for the dental lab according to the highest quality standards for optical measuring systems. The scanner ensures high accuracy for all digitization work of interest to the dental technician.*
The scanner allows you to make scans for nearly all indications and is your lab specialist for every digitization task. The open scanner combines simple operation with object-specific scanning strategies — for complete freedom of application.
Benefits
Why choose inEos X5?
Proven Accuracy
The accuracy of the results of the inEos X5 with inLab CAD SW 16 was verified according to DIN EN ISO 12836.2015. The demonstrated accuracy on standard “bridge” test specimens was at 2.1 ± 2.8 μm, and on standard “inlay” test specimens, 1.3 ± 0.4 μm.
Intelligent scanning technology
Unique 5-axis scanning technology and large working area with its robot arm
Comfortable
The large operating range allows positioning of most common articulators and gives fast, unobstructed access to the scan object.
Open
STL data export for a free choice of design and production components

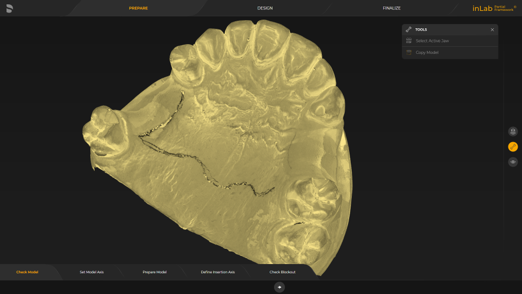

Intuitive interface
Clear software interface and intuitive operation result in digital models with just a few clicks
inEos X5 for digital dentures
The inEos X5 scanning technology enables enhanced user guidance to make even the most complex digitization task user-friendly and intuitive.
Particularly in the case of digital dentures, the scanner is ideally suited for the accurate capture of all relevant information from functional impressions and bite registration.
Applications
Scan technology – Made in Germany. All inEos X5 components were specially developed in Germany for dental applications according to strict quality standards. The inEos X5 ensures precise digital registration of all indication types with its robot arm, unique 5-axis scanning technology combined with large working area.
Downloads
Please find below the most recent Software and document versions. Further resources are provided within our Download Center.

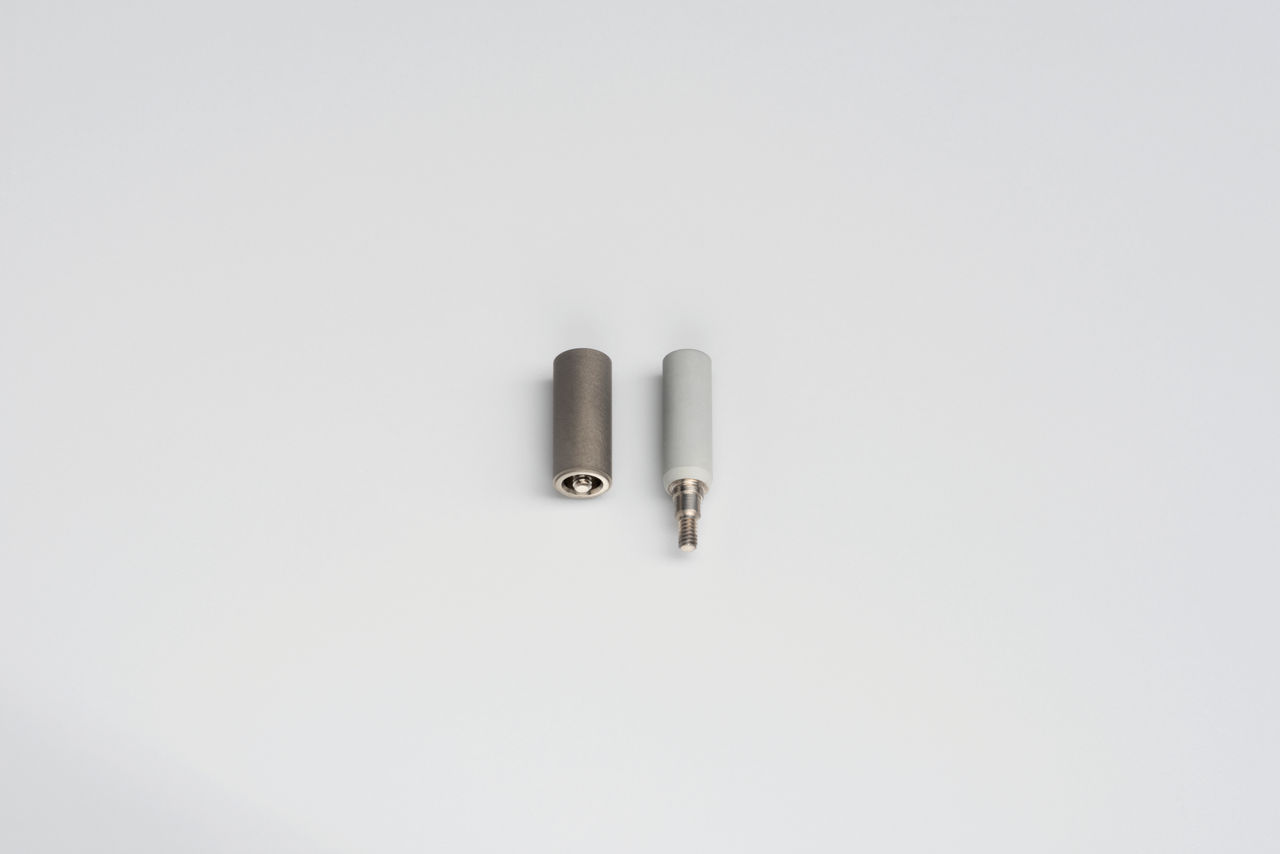

inPost compatibility overview for scanning on multi-unit abutments from nt-trading
inPost compatibility overview for scanning on multi-unit abutments from Medentika
Instructions for linking the exocad Dental DB with the inLab SW. This workflow is possible from exocad 2.3 Matera and inLab CAD SW 19.
New accessory for the inEos X5 model holder to fix smaller models, quadrant models and single stumps in the model holder. Download STL file for producing by 3D printing or milling.
Technical Details
| Data |
Dimensions (W x H x D) in mm | 474 x 735 x 460 |
Weight | 40 kg |
Mains voltage | 100–240 V |
Mains frequency | 47–63 Hz |
Power consumption | 150 W |
Scanning technique | Digital light stripe projection |
Scan material | All commonly used dental model casts (except strongly absorbent, reflecting or transparent materials) |
Interfaces | USB 2.0 |
Network connection | via scanner PC: LAN / WiFi (optional) |

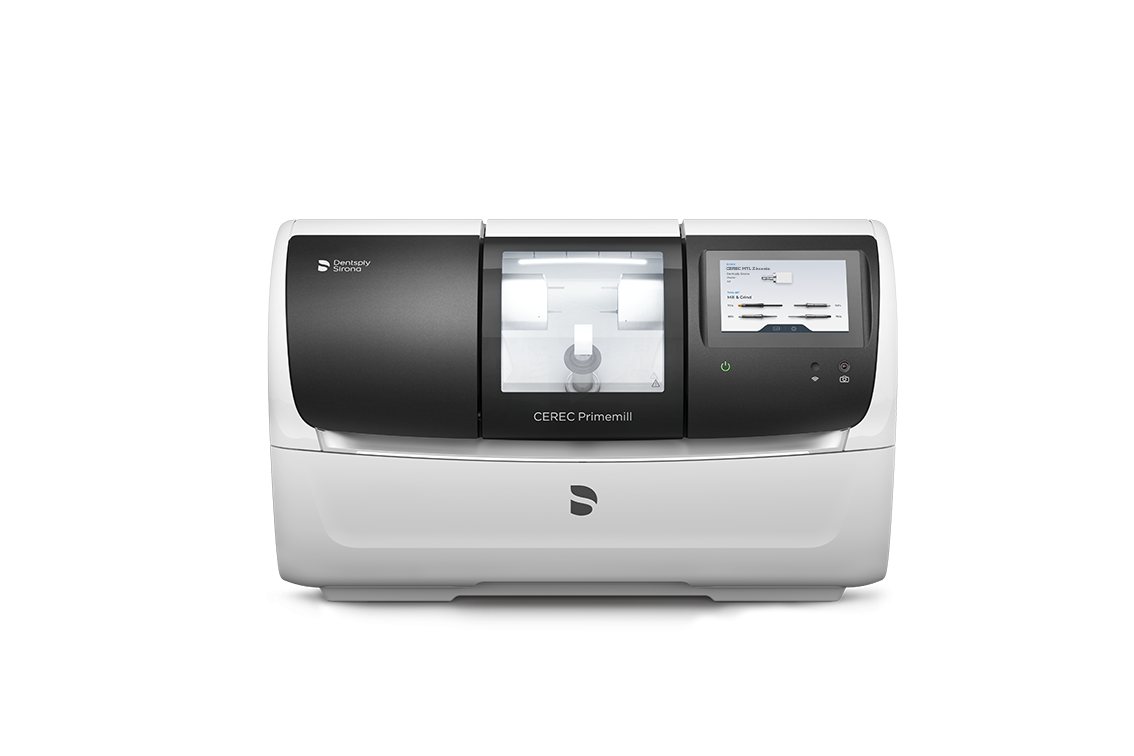

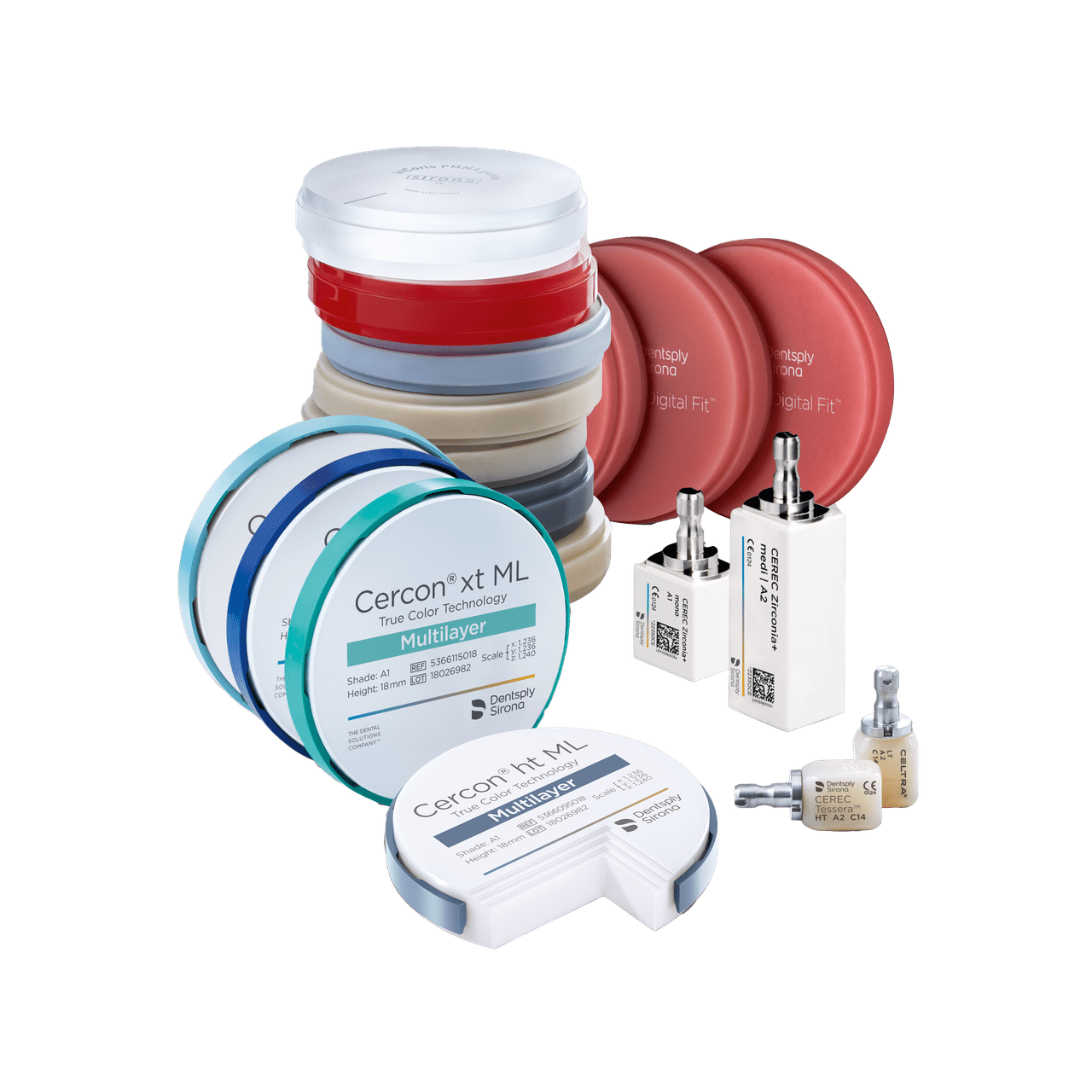

Related Products
* The accuracy of the results of the inEos X5 with inLab CAD SW 16.0 was verified according to DIN EN ISO 12836.2015. The demonstrated accuracy on standard “bridge” test specimens was at 2.1 ± 2.8 μm, and on standard “inlay” test specimens 1.3 ± 0.4 μm.
