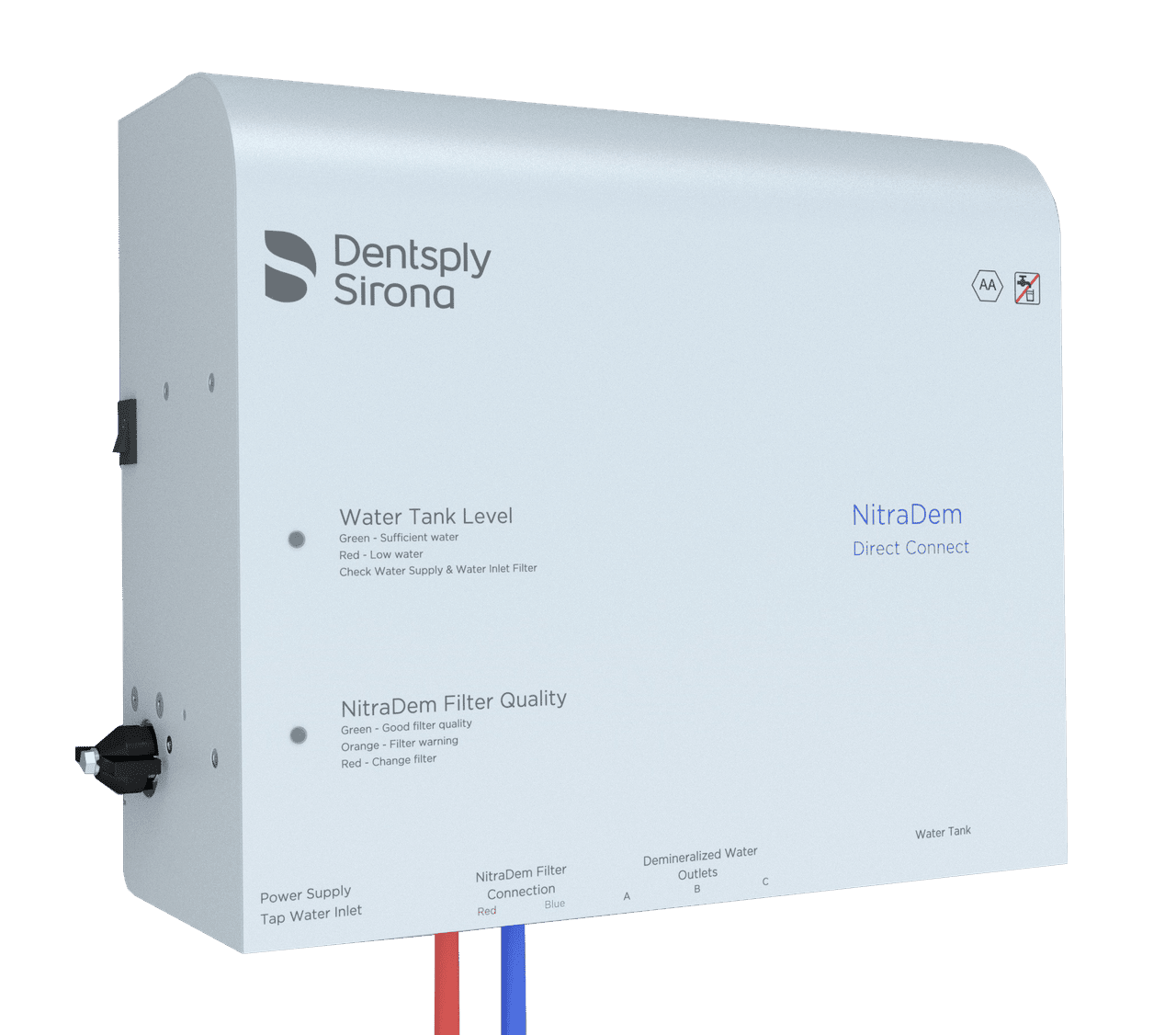

Water treatment system with direct connection
The NitraDem Direct Connect 2 system supplies high-quality demineralized water to the DAC Universal and any other sterilizer at low cost. This highly efficient water treatment system works fully automatically and complies with the European standard EN 1717-5 that allows a direct connection between water supply and sterilizers e.g. DAC Universal. NitraDem Direct Connect 2 supplies up to three machines with purified water, one of which can be fitted with an integrated suction pump, e.g. S1 / S2 / S3 Pureclave.
Benefits
Why choose NitraDem Direct Connect 2?
Direct water connection
EN 1717 Category 5-compliant for direct connection. Water available on demand to all connected infection control system.
Three water outlets
Connection of up to three infection control systems simultaneously.
Easy handling
Simple filter replacement. Compatible with DAC Universal D, DAC Universal S and all standard sterilizers.
Continuous control
Always the right water quality. No quality loss due to storage. Water conductivity is continuously monitored.
Price efficient
NitraDem Direct Connect 2 is not only the easiest but also the cheapest solution compared to other mixed bed systems.
Demineralized water available on demand
Always the right water quality with a direct water connection. No quality loss due to storage. Water conductivity is continuously monitored.
Filters

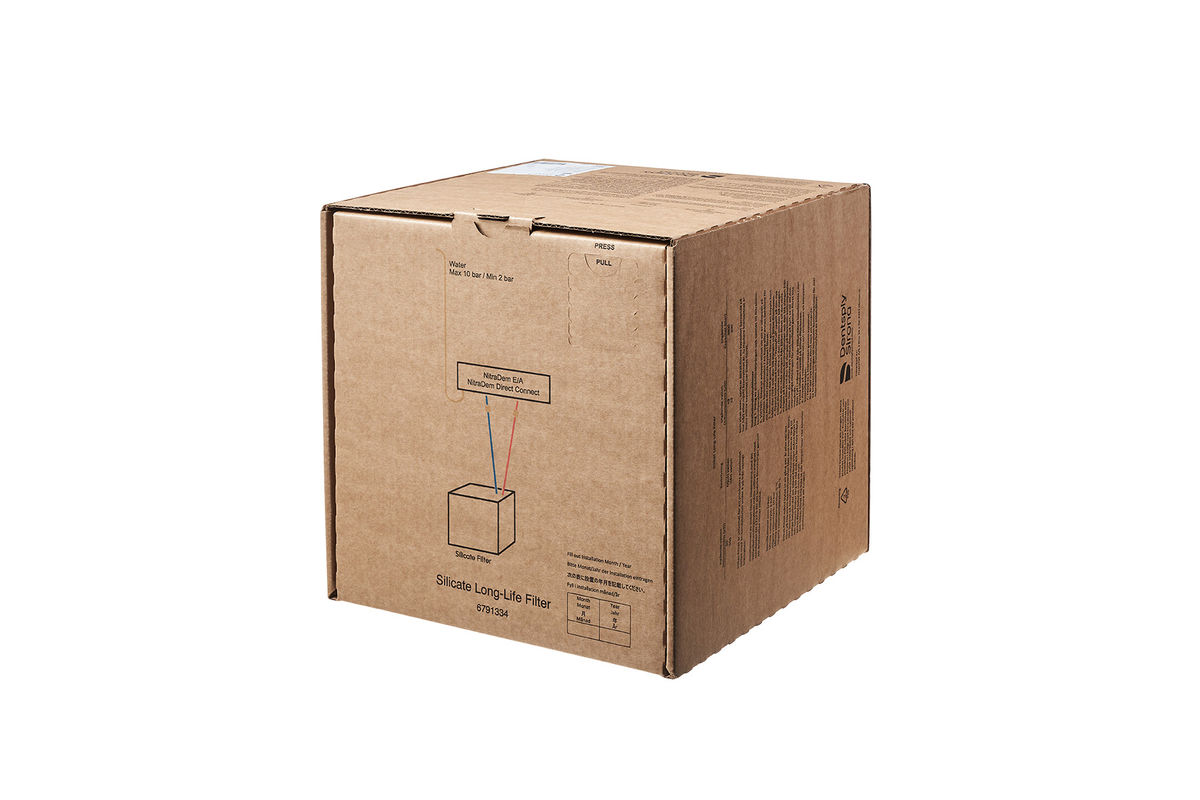

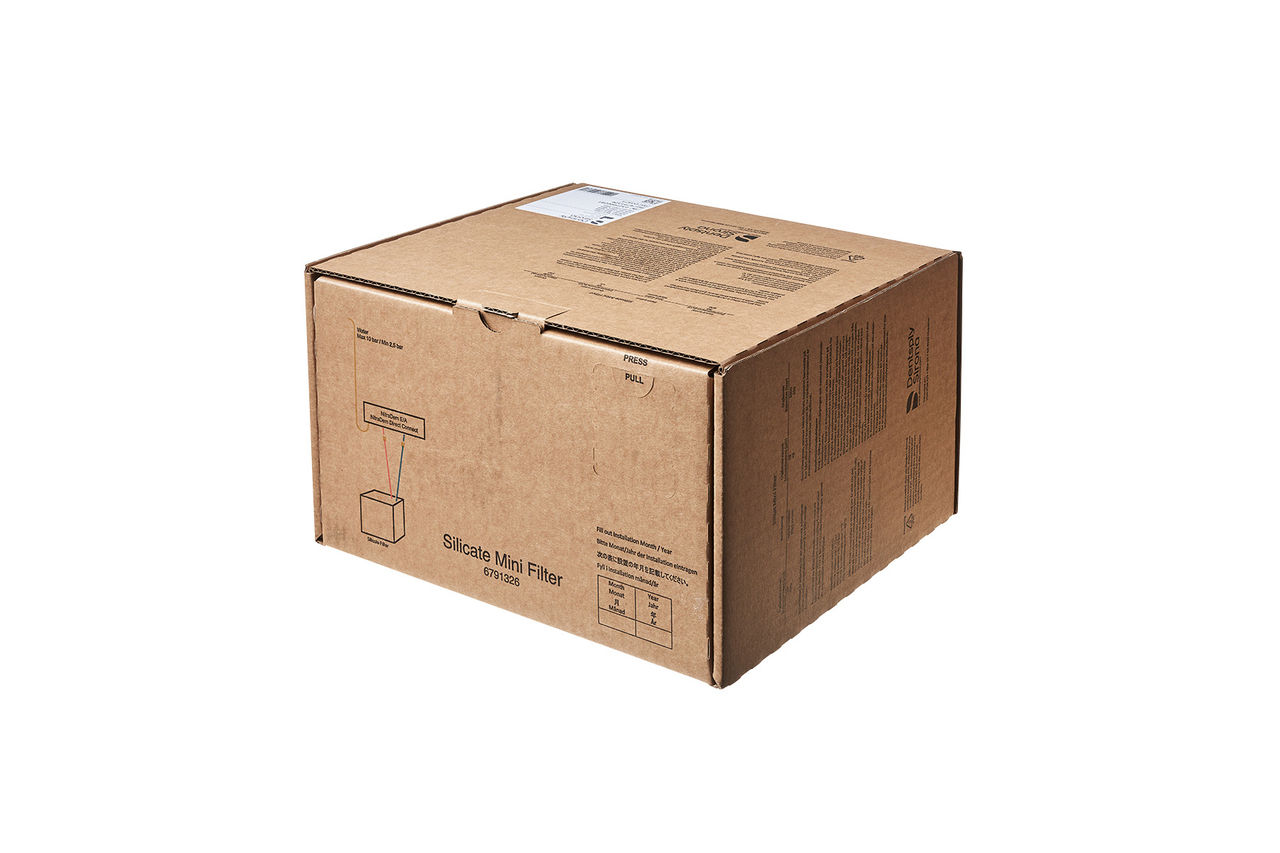

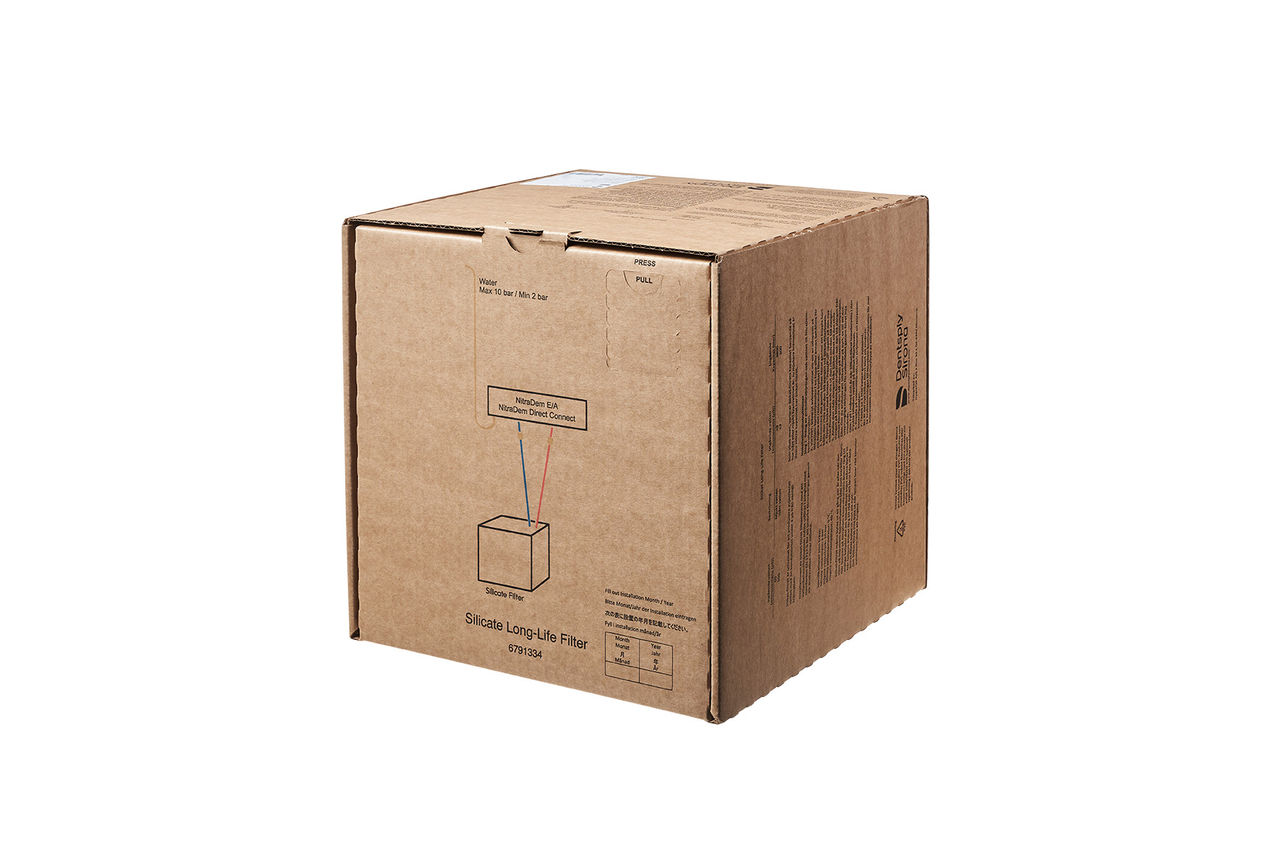

The new easy-to-replace Silicate filters function according to the ion-exchange principle. The capacity of the Silicate filters varies according to the hardness/softness of the tap water. The softer the tap water, the larger the capacity of the Silicate filter.
Technical Details
The capacity of the Silicate filters varies according to the hardness / softness of the tap water. The softer the tap water, the larger the capacity of the Silicate filter.
| Silicate Mini Filter | Silicate Long-Life Filter |
REF | 67 91 326 | 67 91 334 |
Dimensions in cm (H x W x D) |
| 27.6 x 27.9 x 26.8 |
Weight |
| 6.75 kg |
Capacity at 50 μS/cm inlet water purity |
| 5,000 liters |
Capacity at 500 μS/cm inlet water purity | 180 liters | 360 liters |
With the new generation Silicate filters the NitraDem Direct Connect 2 is not only the easiest solution, but also the cheapest solution compared to other mixed bed systems.
Price per cycle* (0.7 liters/cycle)
| Silicate Mini Filter | Silicate Long-Life Filter |
Outlet limit purity | 3 μS/cm |
|
Inlet water 50 μS/cm | € 0.03 | € 0.03 |
Inlet water 500 μS/cm | € 0.45 | € 0.36 |

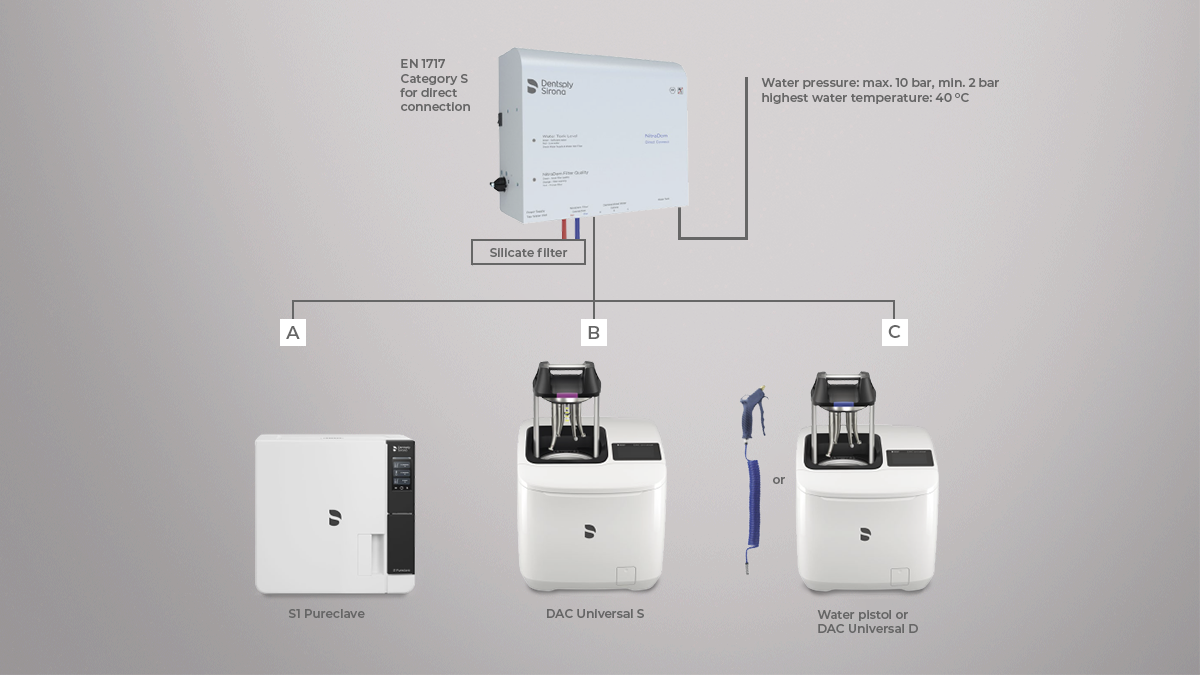

System setup
NitraDem Direct Connect 2 has three water outlets, from which demineralized water is available at a pressure of 5-6 bar. At outlet A an infection control system can be optionally connected with or without a water suction pump. The system is not recommended for connection to cleaning and disinfection devices. Water outlets B and C are used to connect infection control systems without a water suction pump, e.g. water pistol, DAC Universal S.
