Your intraoral X-ray unit is the cornerstone of your daily diagnostic work. The Heliodent Plus intraoral X-ray unit from Dentsply Sirona truly helps to elevate your intraoral care and allows for optimum functionality in every practice. The modularity of its installation options and its image quality surpass every expectation.

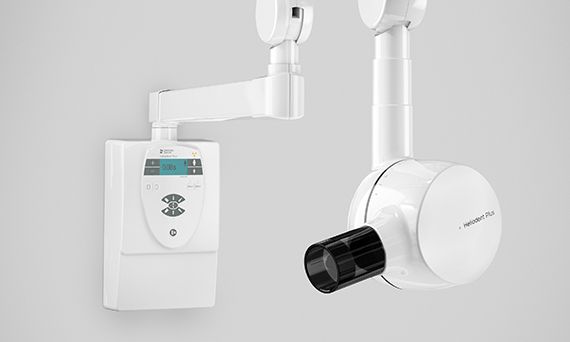

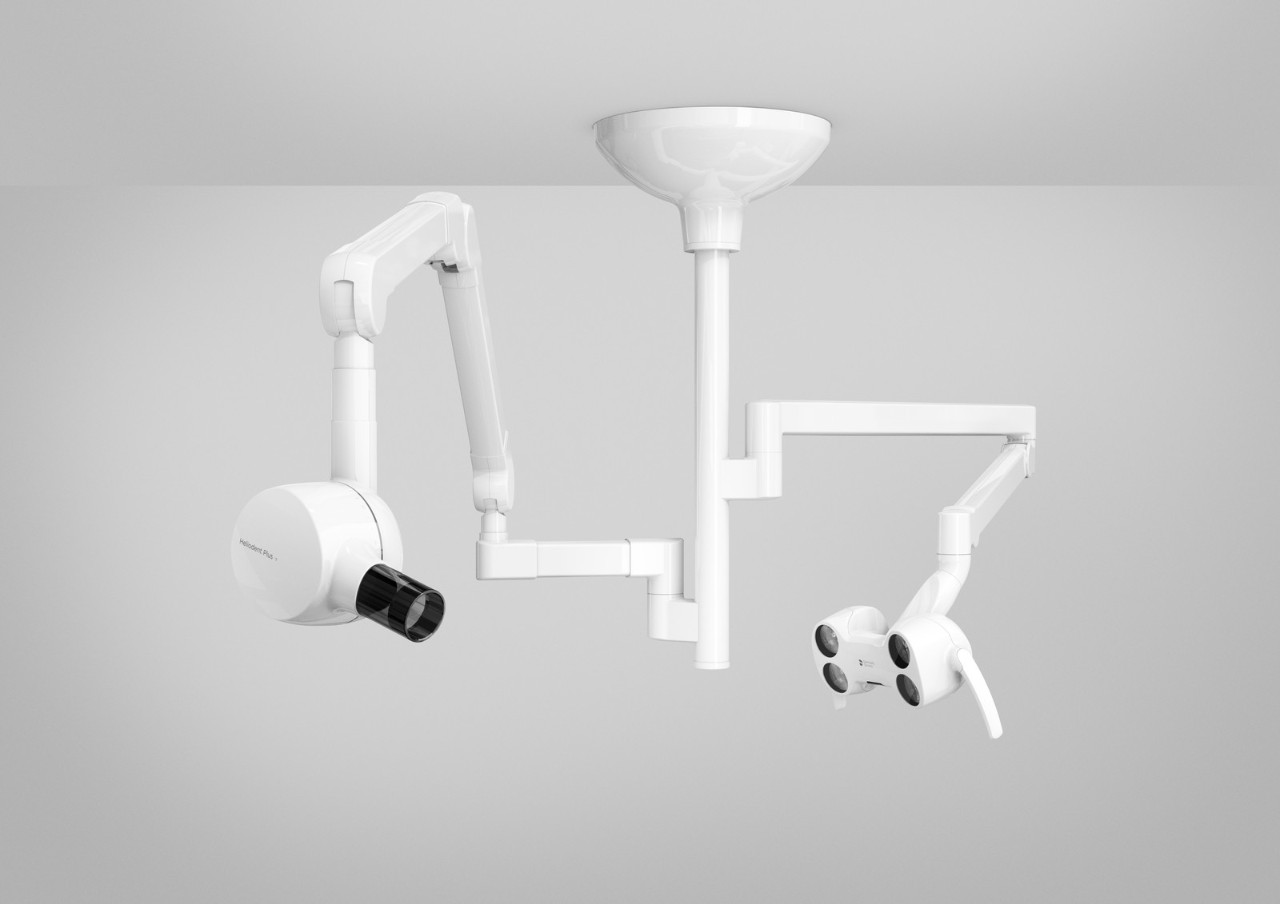

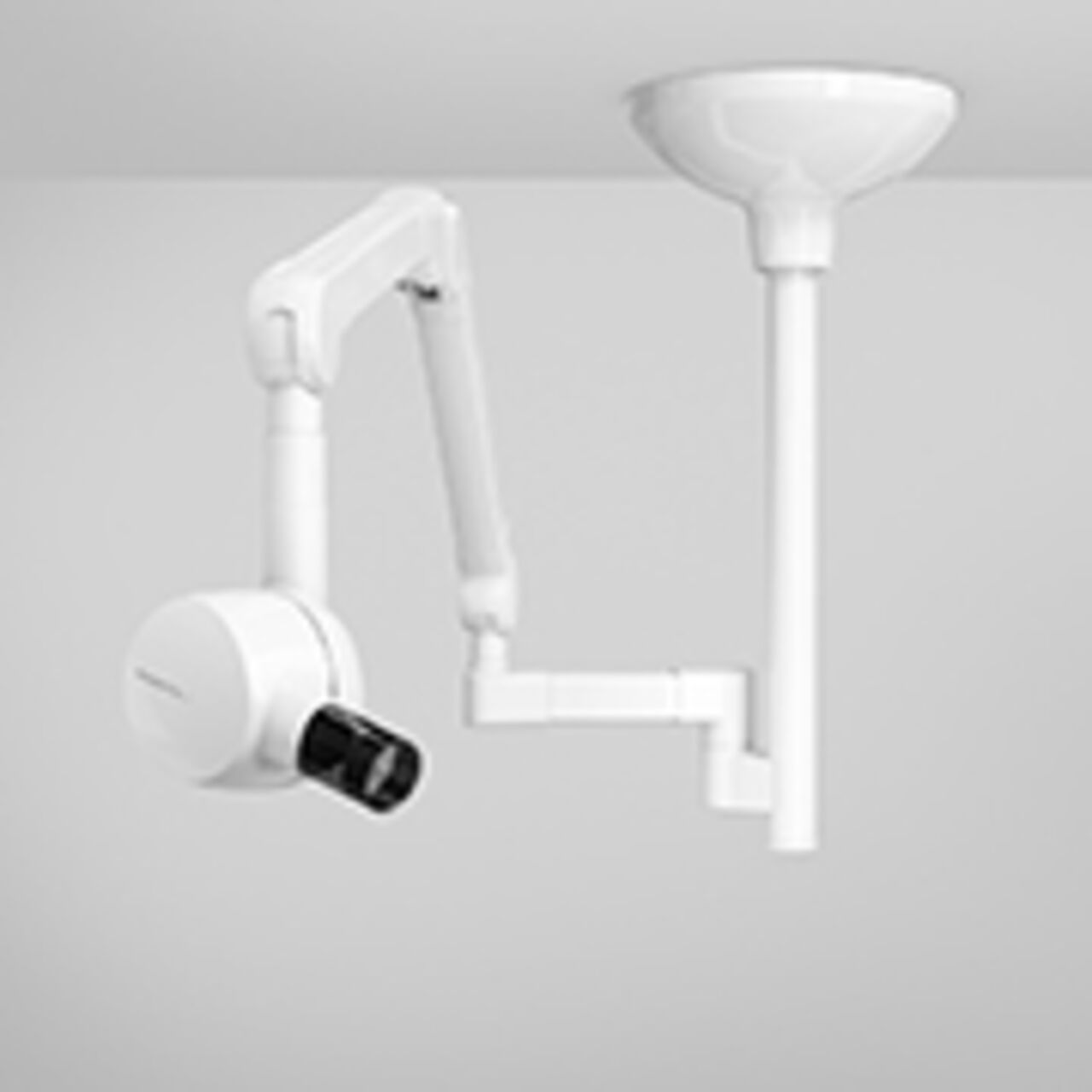

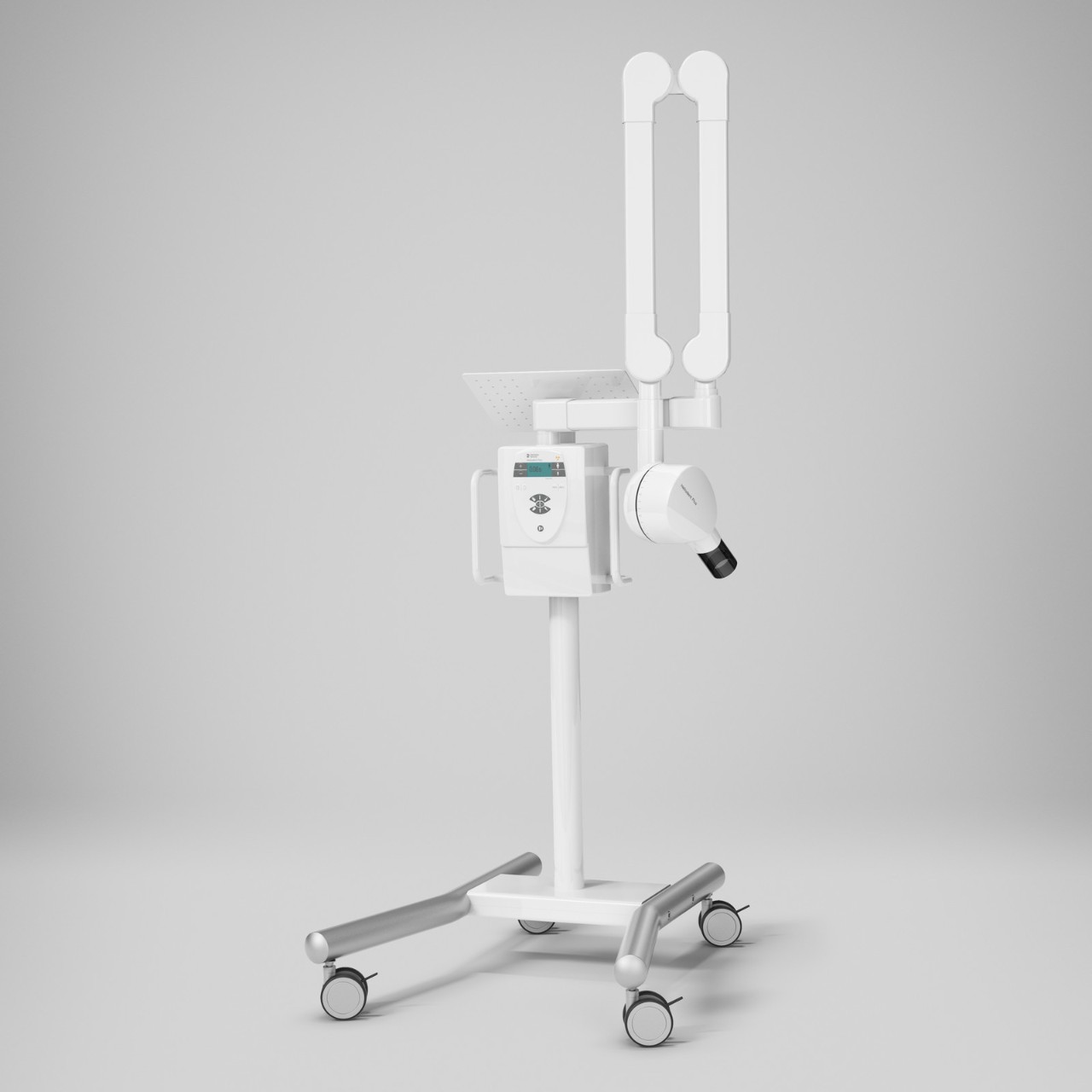

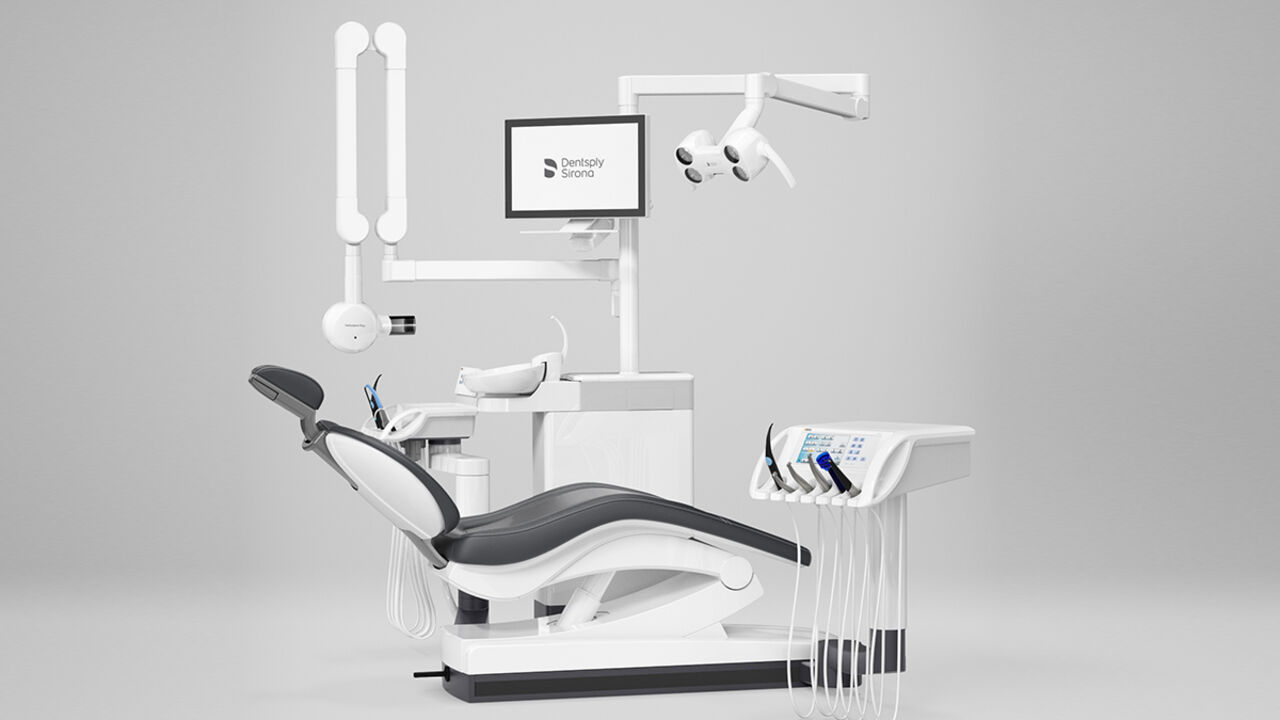

The Heliodent Plus offers a wide range of options to adapt to your clinical needs, room constraints, and budget. The Support arm is available in two designs (round or square) and three lengths (1500mm/59.06” (M); 1790mm/70.47” (L) and 2040mm/80.31” (XL). The unit itself can be installed in four different ways: wall-mounted, ceiling-suspended, and embedded on a Dentsply Sirona treatment center or a mobile cart.
Thanks to its various installation and operation options, the Heliodent Plus can be easily adapted to fit every X-ray situation, regardless of a room's dimensions or layout, we provide options to support each unique workflow.
Benefits
Heliodent Plus offers a 0.4 mm focal spot and vibration-free components to ideally support your workflow
Operate the Heliodent Plus outside of the X-ray room via a remote control, remote timer, or through a manual release.
The robust product design ensures durability, longevity, and security of investment.
Clear user options and numerous installation configurations support the unique needs of your practice and facilitate a flexible workflow. Patient safety is put in the forefront with a radiation meter to help ensure that there is neither underexposure or overexposure of your patient and their X-ray.
"Now that we have installed the new X-ray unit, operating errors are a thing of the past. It is very nice having the option of taking either analog or digital X-rays. The tube head holds very steady so there are no more blurred images."
Dr. Arnolds, Mönchengladbach, Germany
With several different configuration options from the various arm length, tube heads, operation options, and broad range of installation options to select from, your patient positioning, whether it be with sensors, phosphor plates, or film, has never been more uncomplicated. You can work your way without added challenges from your X-ray generator. The Heliodent Plus is the epitome of flexibility and user-friendly.
Power supply | Direct Current (DC) |
Line voltage | 120 - 240 V |
Focal spot (acc. IEC 336) | 0.4 mm |
Tube voltage | 60-70 kV |
Tube current | 7 mA |
Exposure time | 0.01 - 3.2 s, incrementally adjustable |
Detector media | Freely selectable among film, phosphor plate and digital sensor |
Arm length | Medium: 1500mm/59.06” ; Long: 1790mm/70.47” , Extra Long: 2040mm/80.31” |
Installation option | Wall-mounted, ceiling-suspended, on a mobile cart or on a Dentsply Sirona Treatment Center |
