Patient-specific suprastructures beyond CAD/CAM
As part of the digital solutions offering from Dentsply Sirona, Atlantis delivers patient-specific prosthetic solutions for all major implant systems. Atlantis suprastructures include a full range of dental implant suprastructures for fixed and removable dental implant prostheses and overdentures.
We deliver outstanding prosthetic solutions like:
- Wide flexibility in therapy and design
- Compatibility with partially and fully edentulous patients
- Compatibility with all major implant systems
- Simplified restorative procedures
- Comprehensive warranty programme

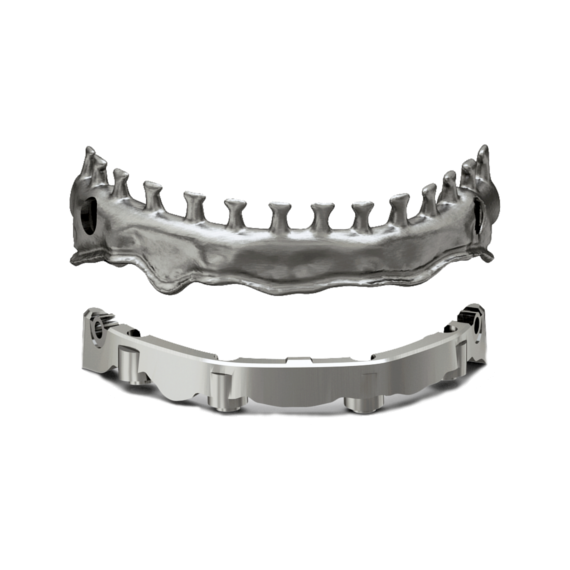

Fixed solutions

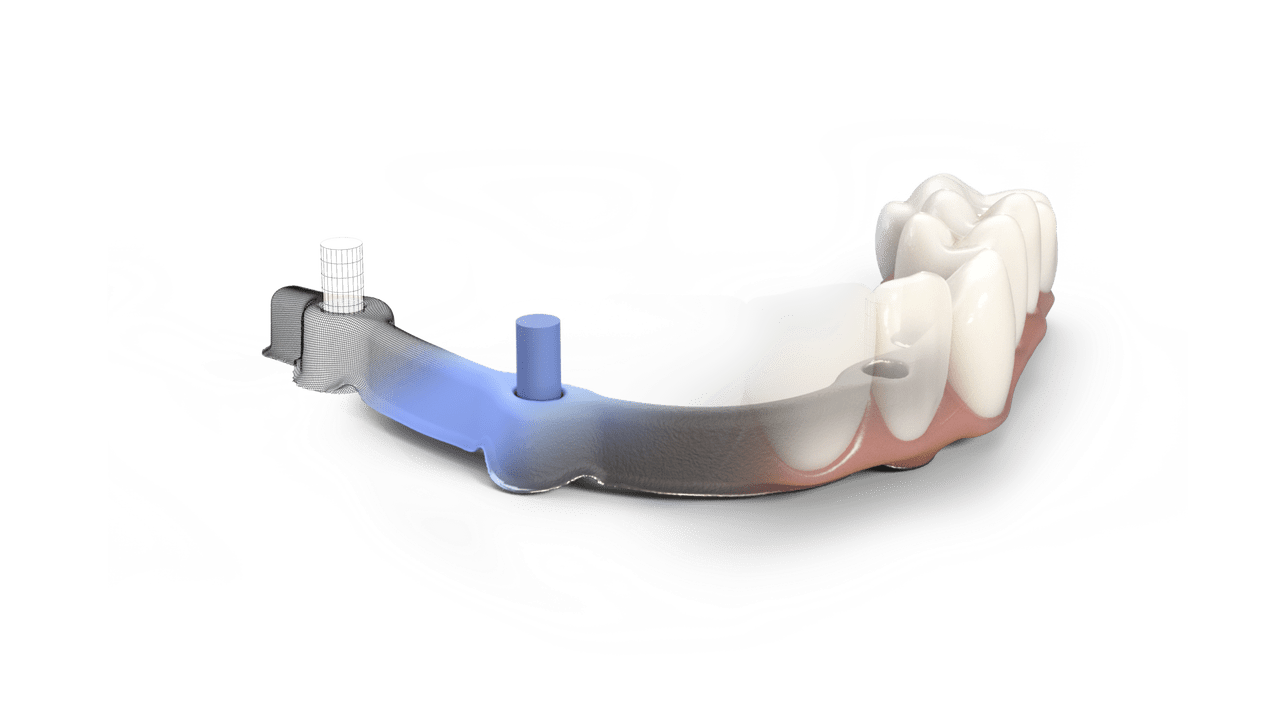

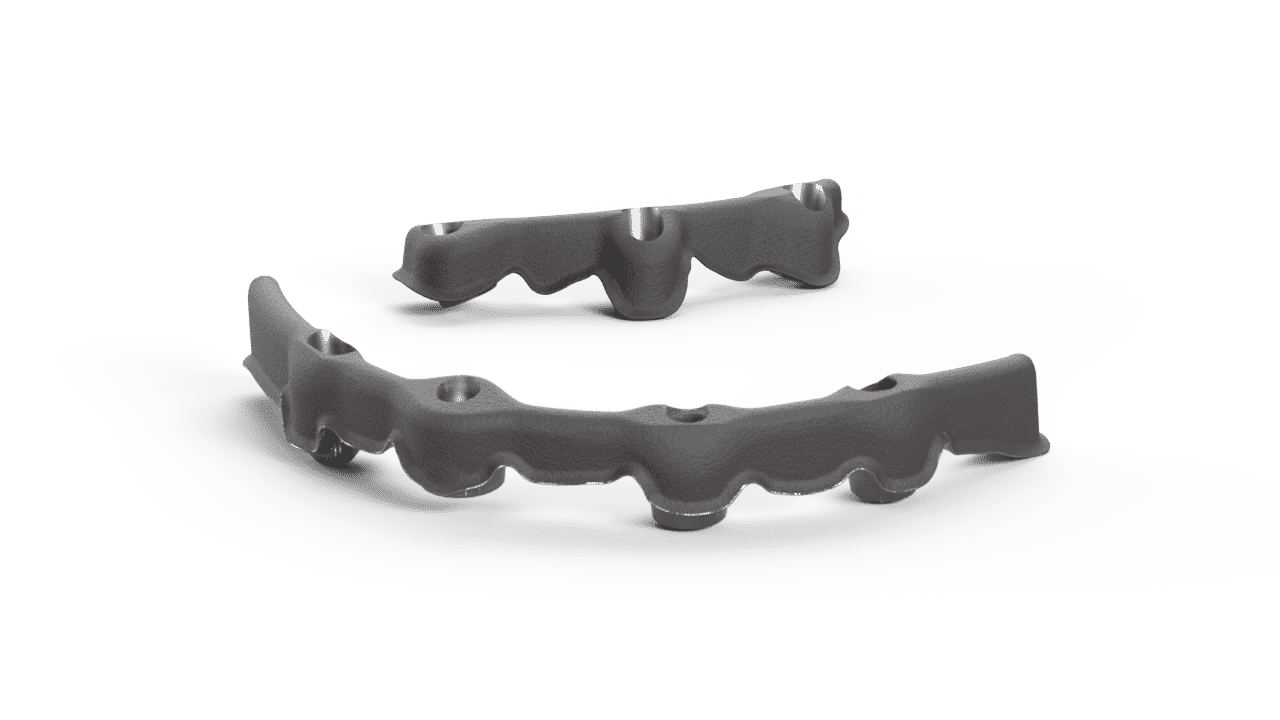

For fixed solutions Atlantis BridgeBase, Atlantis Bridge and Atlantis Hybrid are produced by a metal 3D printing technique, additive manufacturing, which provide unique possibilities for advanced geometries. The result is an ultimate design of suprastructures in titanium or cobalt-chrome, for all major implant systems.
Additive manufacturing - adding layers for more accuracy
Additive manufacturing, the latest in world class manufacturing, is a metal 3D printing technique that provides new possibilities for advanced geometries. The suprastructures for fixed screw-retained solutions are produced by a “layer upon layer” technique, which builds a detailed framework on the micron level, resulting in a more detailed design/finish. With additive manufacturing, the ability to print lightweight materials, such as titanium, opens possibilities for new restorative advantages. The main advantage with additive manufacturing is individualised products with high precision and accuracy. It brings limited need for further treatment before veneering with composite or ceramic material.
Removable solutions
Customised removable solutions -when restorative versatility is prioritised
Atlantis removable suprastructures from Dentsply Sirona have been continuously developed. Today a wide range of bar profiles and attachments can be offered, compatible with all major implant systems which gives you the freedom to work with your preferred implant system. The simplicity of the ordering process and delivery of the suprastructures saves time for the dental technicians, and make the workflow in the dental laboratories more efficient.
Our removable Solutions are milled from solid blocks of titanium or cobalt-chrome (Atlantis Bar), or from solid blocks of titanium (Atlantis 2in1).
- By using world-class manufacturing, supported by computerbased industrial and medical expertise, benefits that go beyond CAD/CAM are provided.
- The milling strategies for Atlantis suprastructures have been optimised to ensure a high strength and an optimal fit of the suprastructures.
- The precise and passive fit has been demonstrated in accordance with the Sheffield Test from the University of Sheffield, UK.
Benefits
Why choose Atlantis suprastructures?
Wide flexibility in therapy and design
Suitable for partially and fully edentulous patients
Suitable for all major implant systems
Simplified restorative procedure
Easier handling
Comprehensive warranty programme

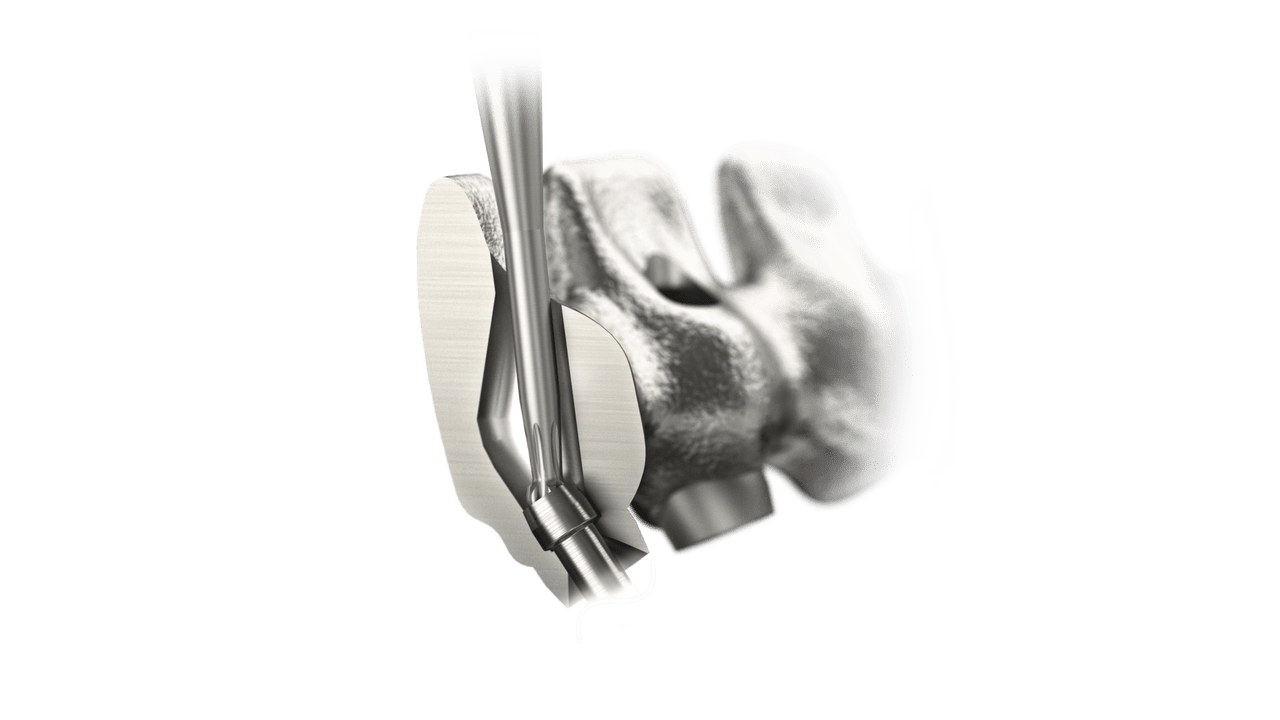

The crucial angle - for function and aesthetics
Optimal positioning of the screw access channel improves aesthetics and makes handling easier.
Angling the screw access channel allows the screw access hole to be optimally positioned, improving the function and aesthetics of the Atlantis Bridge and Atlantis Hybrid restoration.
The channel can be angled up to 30 degrees off the implant/abutment axis.
New retention options!
The optimised surface details created by the process offer different retention options for veneering. Choose your preferred surface suitable for your prosthetic restoration:
- Standard surface – Preferred surface for ceramic or composite layering techniques
- Pin retention – Increased retention area due to small pins, optimal for composite layering technique
- Cell retention – Intricate surface shape; a net of cells is distributed on the surface of the framework to enlarge the contact area for composite veneering (only available for Atlantis Hybrid)
Grow your practice - Simplicity you can use
Clinicians can simply take a digital or conventional impression and send the case material, together with the case prescription, to the dental laboratory and prescribe for an Atlantis patient-specific solution. Dental technicians can order Atlantis solutions online via Atlantis WebOrder 24 hours a day, 7 days a week. The dental laboratory quickly sends digital impressions directly to the Atlantis production facility via Atlantis WebOrder or by using lab-based scanning. They can also send case models in the Atlantis CaseSafe, which ensures safe transportation of your case materials.
After receiving the online order and patient case materials, we design your abutment or suprastructure and support your individualised approach to caring for your patients. You can count on the Atlantis’ sophisticated design softwares to consider all aspects of the design parameters with your specific requirements and preferences incorporated. Before production and quality control, Atlantis allows for simplified review and approval of designs.
For maximum ease of use and precision, all Atlantis solutions are designed, reviewed, and manufactured based on the individual patient data and require no additional manual modifications before placement.
Atlantis supports a consistent workflow for all your implant-supported restorations for whichever implant system(s) you prefer. This streamlining brings simplicity and profitability to the dental practice by eliminating the time and costs for inventory management, equipment maintenance, and chairside modifications. Additionally, it frees up time for additional cases to be produced at the dental laboratory.
Atlantis is an open, fully flexible business model that can be easily adjusted to your needs and processes. By using Atlantis, you avoid additional investment in software and equipment as well as the associated cost for training and maintenance. This allows you to increase volume without putting more demand on your staff.
Open compatibility for your choice of implant system
Using Atlantis suprastructures, you get an open digital solution that provides great flexibility for your restorative implant needs.
Atlantis suprastructures are compatible with a broad portfolio of implant and abutment connections which means that you can continue to work with your preferred implant system.
Open solution for all major implant systems
With Atlantis suprastructures we give you the freedom to choose between implant and abutment connections from implant brands such as:
- Dentsply Sirona Implants
- BioHorizons
- Biomet 3i
- Camlog
- Keystone Dental
- Nobel Biocare
- Straumann
- Zimmer Dental
- Extended list (only available outside of US/CAN)
Detailed information about the implant compatibility for Atlantis suprastructures is presented in the Atlantis suprastructures implant compatibility chart which is available on the Help section of Atlantis Weborder.
How to get access to Atlantis WebOrder
To start ordering Atlantis solutions, you can either go directly to Atlantis WebOrder and register an account or contact your local representative for assistance.
The Order and Manufacturing Process
Atlantis patient-specific solutions are produced using the latest developments in world-class production technologies and are supported by computer-based industrial and medical device expertise. The art and craft of dental laboratory procedures are further enhanced through the application of engineering principles, allowing for the design and production of consistent, high-quality, patient-specific implant solutions for all major implant systems.
Step by step
- The clinician takes an implant- or abutment-level impression and sends it to the dental laboratory.
- The dental technician enters the order using Atlantis WebOrder. Case models and materials are shipped to Dentsply Sirona Implants.
- After review and final approval of the design in Atlantis Viewer, the suprastructure is milled or printed, depending on which solution was chosen.
- The Atlantis suprastructure is shipped to the dental laboratory, which then produces the final prosthetic solution and sends the complete case back to the clinician.
