Cube your firing performance
With the Multimat Cube and Cube press, we are continuing the worldwide success story of Multimat ceramic furnaces. Ceramics in particular are a flagship of dental laboratories and the results must be achieved reproducibly every day.
Whether classically veneered or produced by means of pressing technology, the dental lab has to rely on the ceramic furnace. The new Multimat Cube ceramic ovens are the ultimate combination of performance, ease of use and reliability. And all this in a modern design.

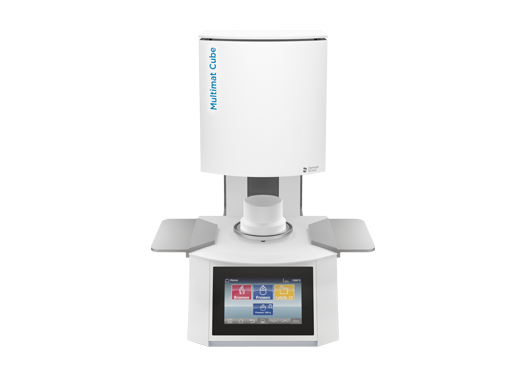

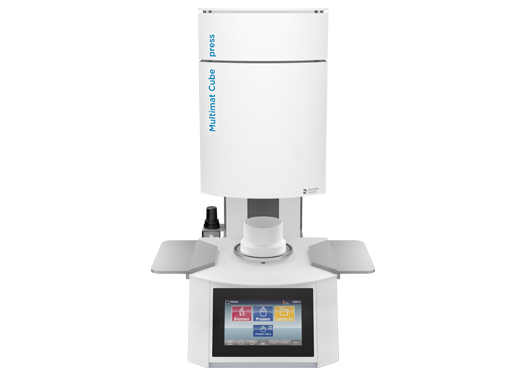

The Multimat Cube Family
Benefits
Why choose Multimat Cube?
High Performance
High temperature stability and multi-stage heating and cooling programmes ensure great results when pressing and firing of common dental ceramic systems, including lithium silicate / disilicate ceramics.
Intuitive Usability
User friendly large touch display with intuitive user interface gives clear access to programmes and makes it easy for everybody to use. LED status display saves time, keeping users up to date from a distance. Firing / pressing programmes of Dentsply Sirona porcelain systems are pre-installed. Two USB ports for data backup, update function via USB-Stick.
Ultimate Reliability

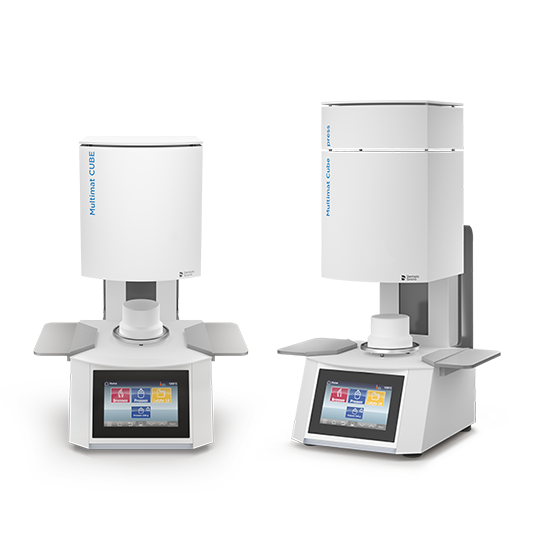

Extensive 72h stress testing, two-year warranty and technical support ensure ongoing reliability. Intelligent pre-heating programme. Secure placement of your restoration, due to the movable chamber, which avoids vibration of the firing tray. “Made in Germany” quality, approved according to international and ETL standards.
Modern Design – Fits seamlessly into the dental environment
Premium materials and minimalistic design, Glass-Touch-Display with 3 mm reinforced glass.

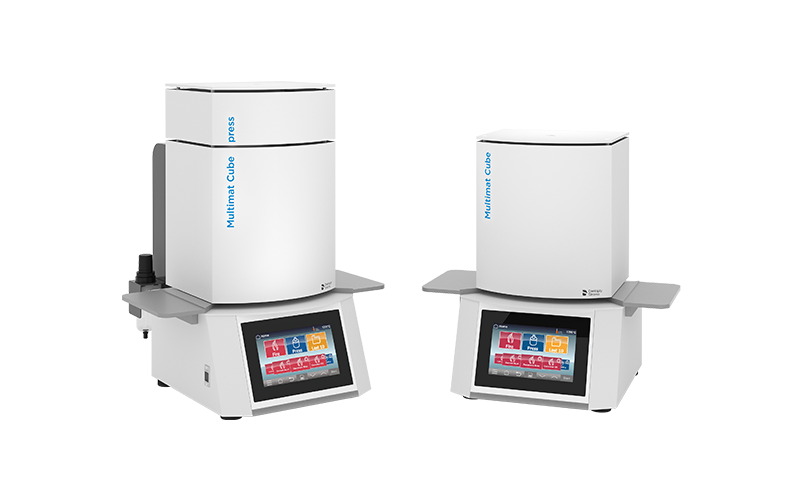

Multimat Cube/ Cube press Porcelain Furnaces
Whether classically veneered or produced by means of pressing technology, the dental lab has to rely on the ceramic furnace. The Multimat Cube / Cube press furnaces are the ultimate combination of performance, usability and reliability for the dental laboratory. And all this in a modern design.
Technical Specifications
| Height Multimat Cube |
|
| Height Multimat Cube press |
|
| Width | ≈ 310 mm |
| Depth | ≈ 470 mm |
| Weight |
|
| Voltage Multimat Cube |
|
| Voltage Multimat Cube press |
|
| Frequency | 50-60 Hz |
| Power consumption |
|
Specific technical characteristics
Opening range, base to firing chamber | 100 mm |
Closing time, firing chamber | ≈ 19 seconds |
Ambient temperature, operation | +5 °C to +40 °C, ideal: +20 °C |
Ambient temperature, storage | 0 °C to +40 °C |
Humidity | 80% relative humidity at temperatures up to 31 °C or linear decrease to 50% at +40 °C |
Environment | Indoors only, on a non-flammable surface |
Heating Element | Quartz muffle with an openly radiating filament |
Maximum firing temperature | 1200 °C |
Heating rate | Up to 120 °C / min |
Pressure in pressing mode | 0 to 3 bar, monitored |
Display |
|
Accessories |
|
Technical specifications may change without notice
