The right partner for your file

With up to 7.5 Ncm and 3,000 rpm, the X-Smart® Pro+ endo motor has been specifically designed to drive Dentsply Sirona’s endodontic file systems in both continuous rotation and reciprocating modes. Our integrated apex locator will provide the confidence for length determination while shaping. And the touchscreen interface provides easy access to manufacturing settings for the files you choose, with upgradeable firmware to accommodate tomorrow’s treatments.

Benefits

Why Choose X-Smart® Pro+?

Specifically designed to drive Dentsply Sirona’s endodontic file systems

The X-Smart® Pro+ endo motor has been specifically designed to drive Dentsply Sirona’s endodontic file systems in both continuous rotation and reciprocating modes.

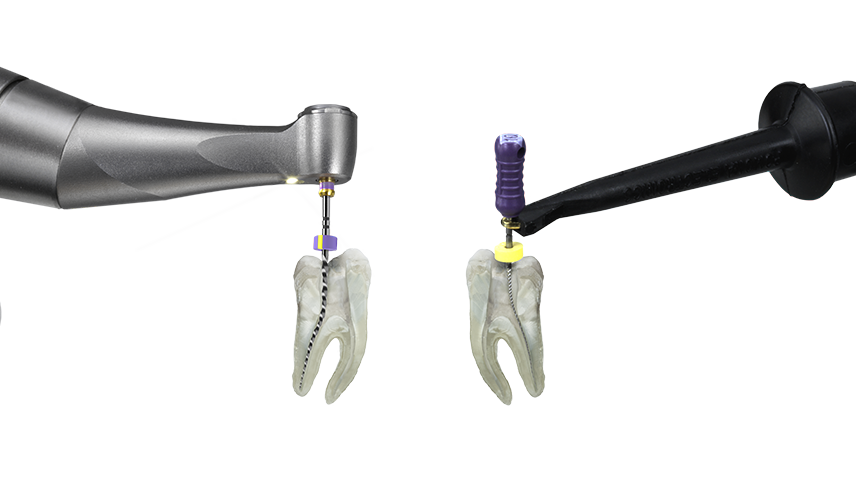

Integrated Apex Locator with Dynamic Accuracy™ Technology

Our Dynamic Accuracy™ technology reads the measurement signal accurately while shaping, with auto-reverse function to keep your file on your desired target.

Mini-Contra Angle head with integrated 10-Lumen LED

Great visibility and access. Locate and enter root canal with confidence. Easy treatment of patients with limited mouth opening.1 360° adjustable position.

Removable/autoclavable handpiece metal sheath

Supports compliance with infection control guidelines. Reduces waste, making handpiece barrier sleeves obsolete.

User-friendly touchscreen interface

Large, easy-to-clean screen. Easy navigation with gloved hand. Up to 30 customisable file sequences with upgradable firmware. Optional Bluetooth® foot switch.2

Portable and ergonomic design

Battery power to support a full day of work. Portable convenience with the power and functions of a tabletop unit. Drag and drop magnetic holder for enhanced comfort, reduced fatigue.

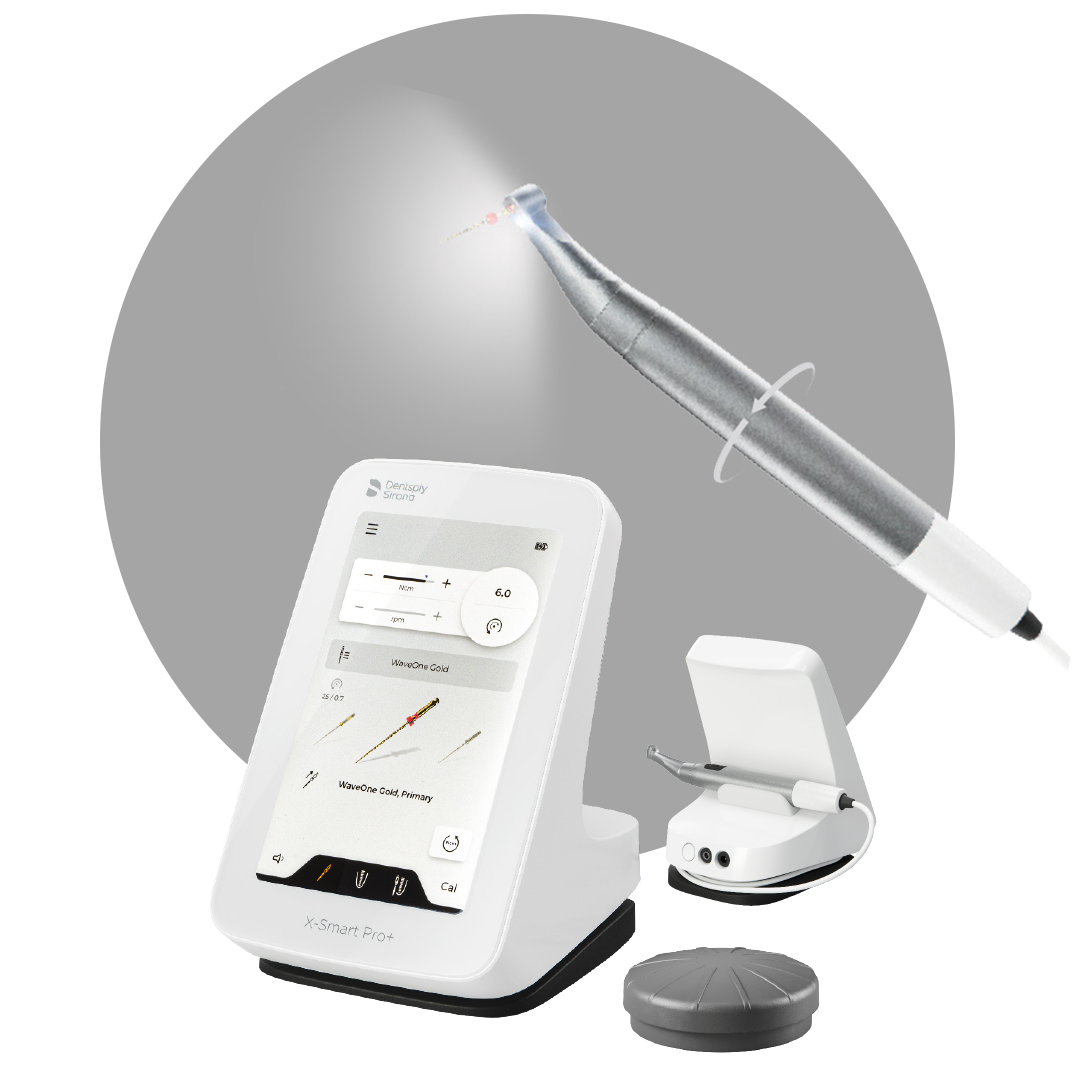

About X-Smart® Pro+

A streamlined workflow helps you do your best work

The X-Smart® Pro+ endo motor keeps you focused on the procedure, not on the tools.

More Details

Technical Specifications



  • Reciprocating and rotary motions
  • Includes file library with preset programmes for WaveOne® Gold, ProTaper Ultimate™, TruNatomy®, RECIPROC® Family, and VDW.ROTATE® endodontic file systems
  • Customisable file sequences, compatible with other endodontic files and instruments
  • Auto-reverse rotation at preset torque limit and at doctor’s desired working length
  • On/Off button on the motor handpiece or optional wireless footswitch
  • Calibration function (CAL) for precise torque setting
  • 7˝ touch screen interface
  • Mini contra-angle with integrated 10-Lumen LED
  • 360° adjustable position
  • Lithium-ion battery
  • Autonomous operation through a full day of work4
  • Fully recharged in only 1,5 hours
  • Motor can be run on battery only or can be recharged during treatment
  • Universal charger (voltage 110–240, 50/60 Hz)
  • Torque range: 0.2 N·cm – 7.5 N·cm
  • Speed range: 100 rpm – 3,000 rpm
  • Autoclavable handpiece sheath and contra-angle
  • Upgradeable via Wi-Fi

Root Canal Shaping

Endodontics

Contact us

Find out more about our Endodontics products and solutions.

  1. Compared to contra-angles with larger head height
  2. The Bluetooth® word mark is a registered trademark owned by Bluetooth SIG, Inc.
  3. Internal data on file. For more information, contact Consumables-Data-Requests@dentsplysirona.com: A. ElAyouti,  X-Smart Pro+ - Accuracy of integrated apex locator, University of Tübingen (Germany). Unpublished data on a bench test setup on 3D printed teeth
  4. Based on 10 treatments of 2 canals with 4 files per canal.
