For those who want more

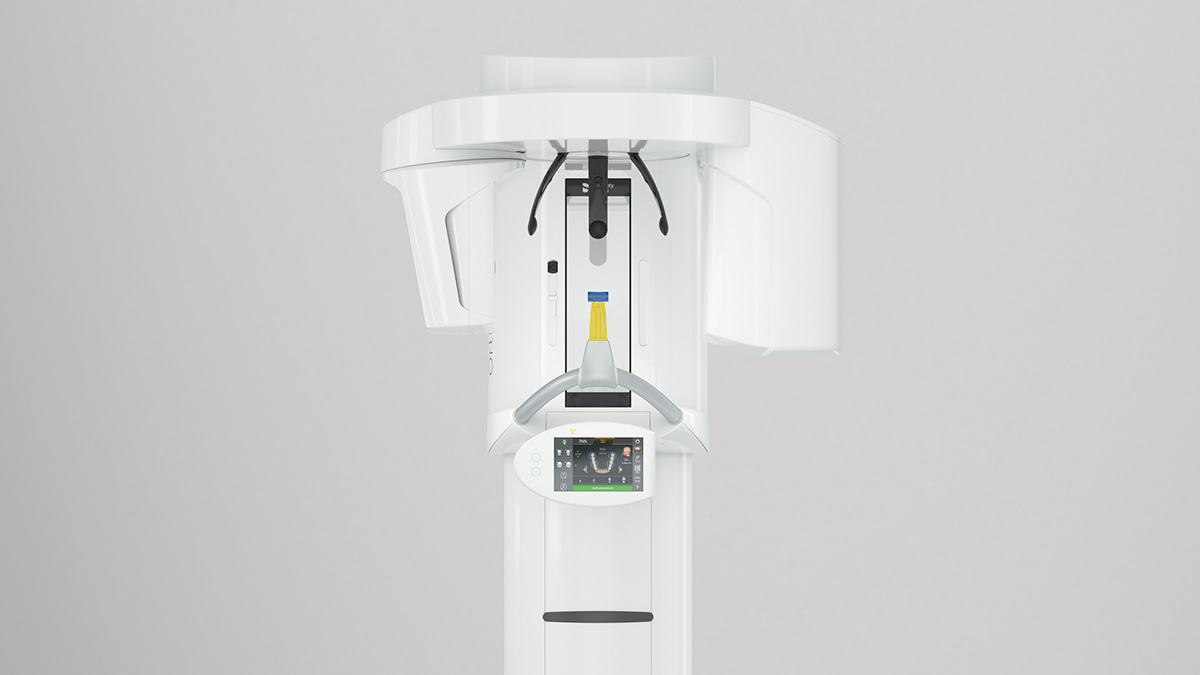

The 2D/3D Power Performer Orthophos SL is a great choice for those who simply want more. Designed to meet demanding image quality standards, the integrated Direct Conversion Sensor (DCS) provides high-detail data, and the intelligent autofocus automatically delivers in-focus panoramic images with excellent overall sharpness. Orthophos SL offers ease of use with automatic positioning, intuitive operation via the EasyPad, and features an individually adjustable ambient light for an exclusive visual appearance.

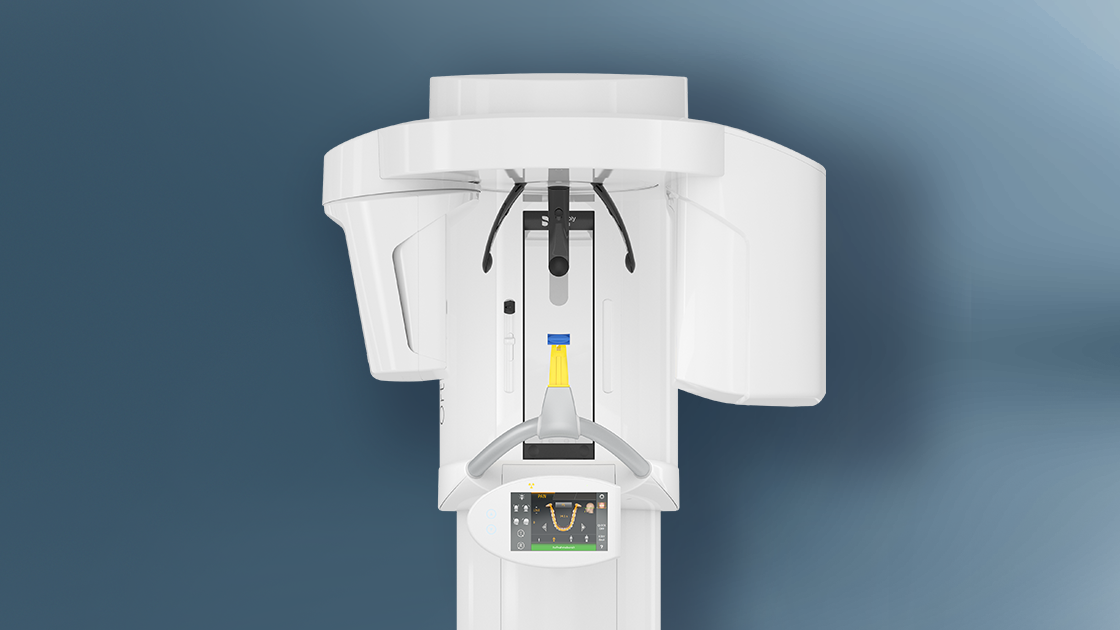

Orthophos SL from Dentsply Sirona
Benefits
Why choose Orthophos SL?
Outstanding images
Direct Conversion Sensor addresses particularly high standards for 2D imaging
Excellent overall sharpness
Autofocus automatically generates an impressively sharp panoramic radiograph from several thousand individual images
Consistency and reproducibility
Auto positioning with the patented occlusal bite block and the intuitive EasyPad help to achieve consistent results and a high level of reliability
Safe and easy patient positioning
With the motorized temple and forehead supports, automatic temple width measurement, light localizers and integrated handles for additional positioning stability
Comprehensive panoramic programs and cephalometric option

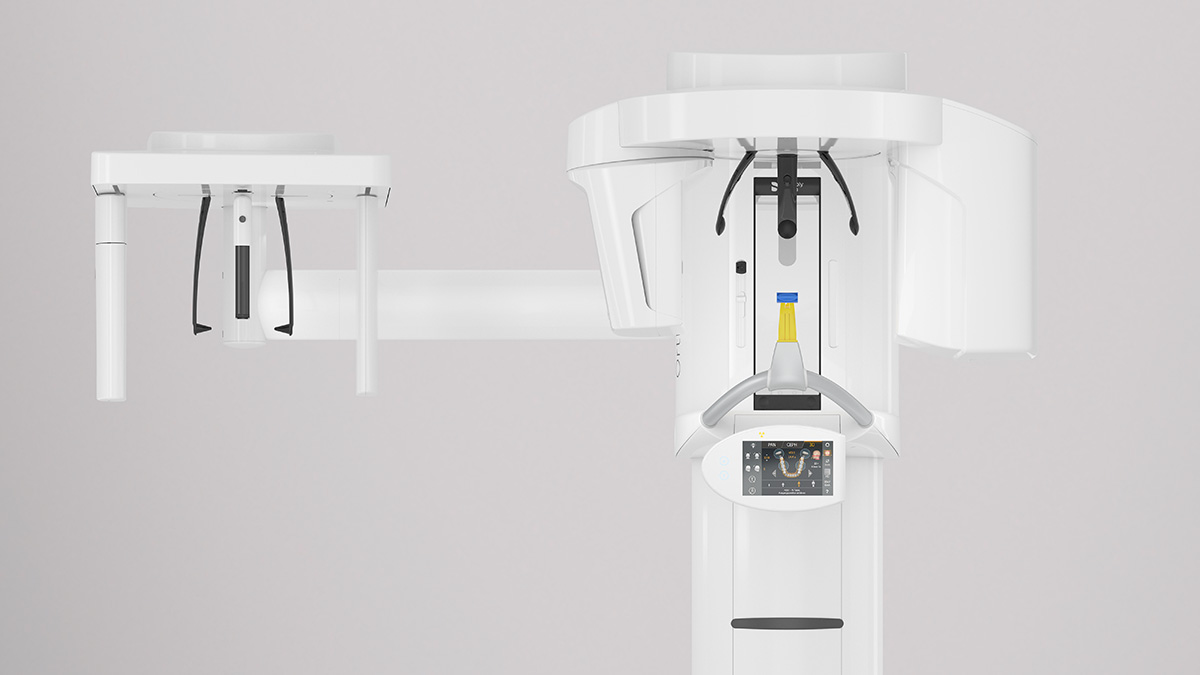

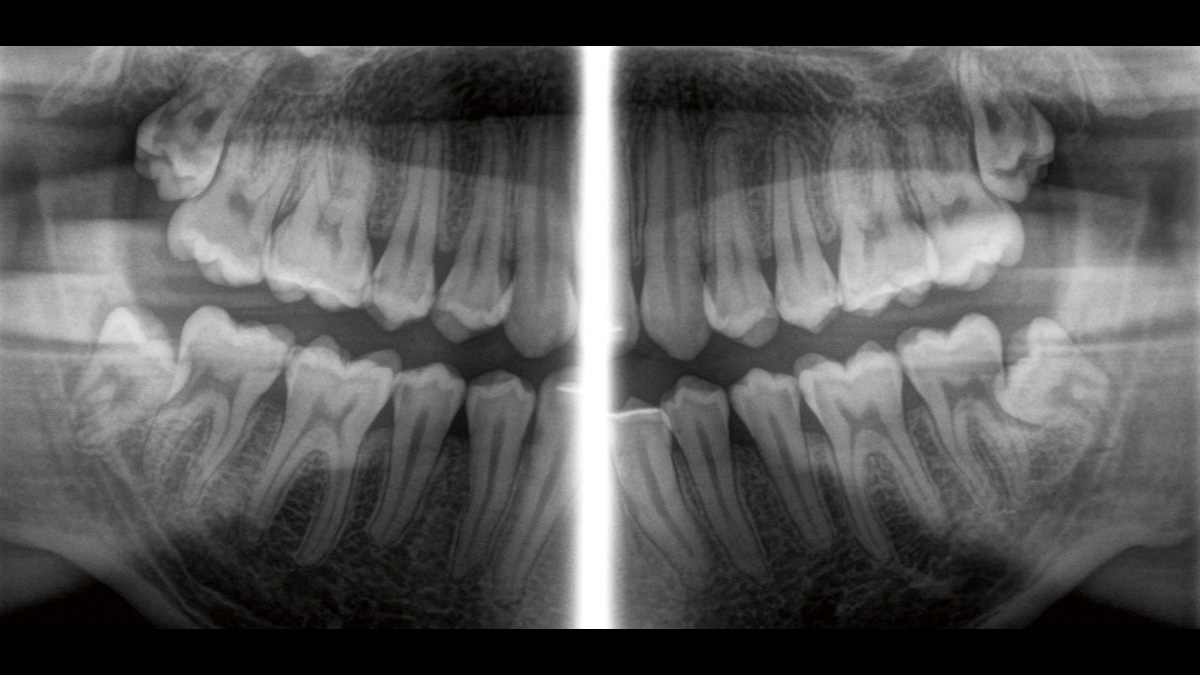

Several panoramic programs for adults and children (standard, bitewing, sinus, etc.) are available. A ceph arm (left or right) can be included at the time of purchase or retrofitted later as needed
3D according to your needs
With the 3D Low Dose mode, you get 3D images in the dose range of a 2D X-ray. In HD mode (more than 800) individual images are captured during a single rotation and converted into a 3D volume with up to 80 μm for low-noise images in high resolution
Practice environment
With a selection of over 30 colors, the Ambient Light of the Orthophos SL creates a pleasant atmosphere for your patient and blends in perfectly with your modern practice look
Field of view
Ø 5cm x 5.5cm to Ø 8cm x 8cm (optional Ø 11cm x 10cm)

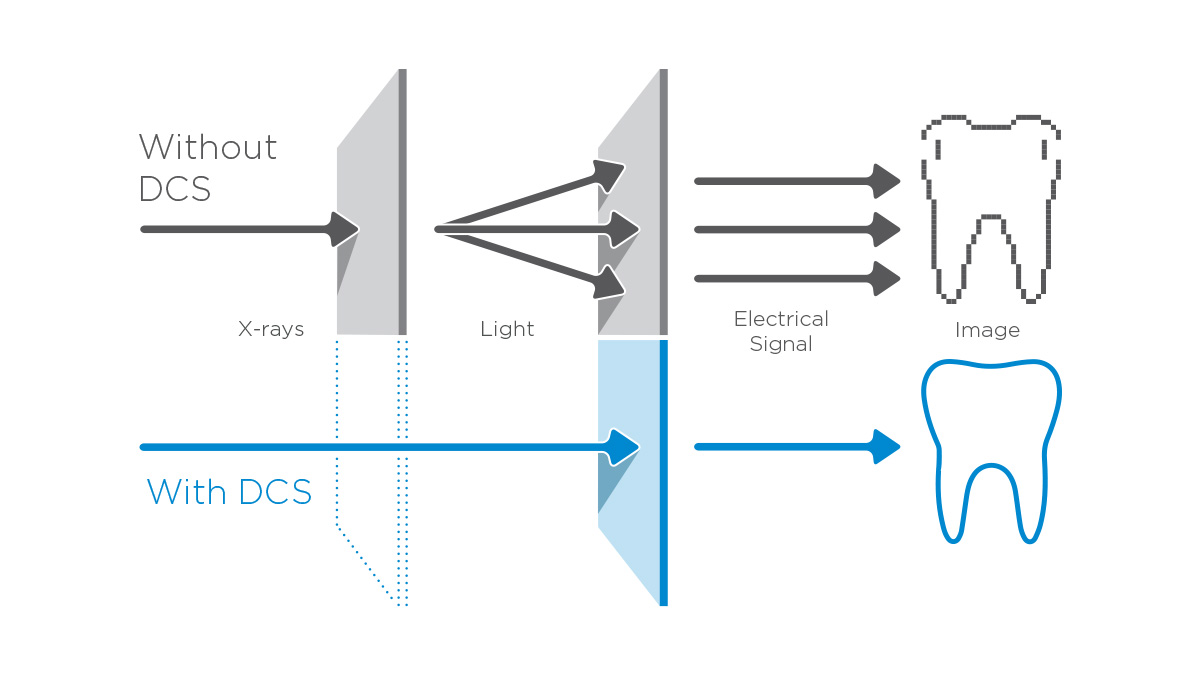

DCS – Sharpness for fine details
The Direct Conversion Sensor (DCS) has redefined the standard of panoramic imaging. X-rays are converted directly into electrical signals – unlike conventional systems, there is no signal loss due to light conversion, which facilitates an improved image information output. The result is images with a very high level of sharpness - even at a low dosage.

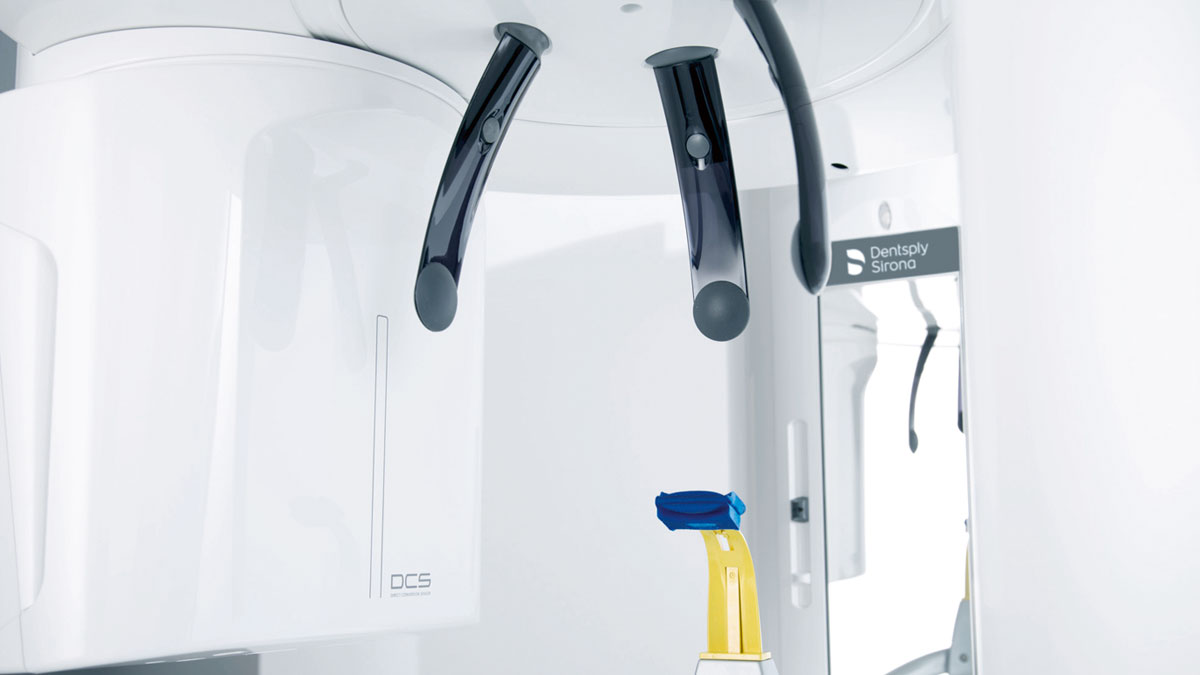

Easy to Use. Precise Patient Positioning.
For most practices, the main goals when using an X-ray device are to capture the best possible image to support an accurate and precise diagnosis and to make the process as comfortable as possible for the patient. Orthophos SL offers solutions to help support both of these goals:
- The EasyPad and its intuitive user interface
- Automatic positioning aids such as the patented occlusal bite block and the 3-point head fixation
- Integrated temple width measurement
Sharp Panoramic Images with Intelligent Autofocus
An X-ray image must be instantly diagnosable. Autofocus significantly aids in this. Orthophos SL captures several thousand individual images in one cycle and automatically detects sharp areas to generate a consistently sharp overall image. Intelligent Autofocus requires no manual steps before and after the capture.

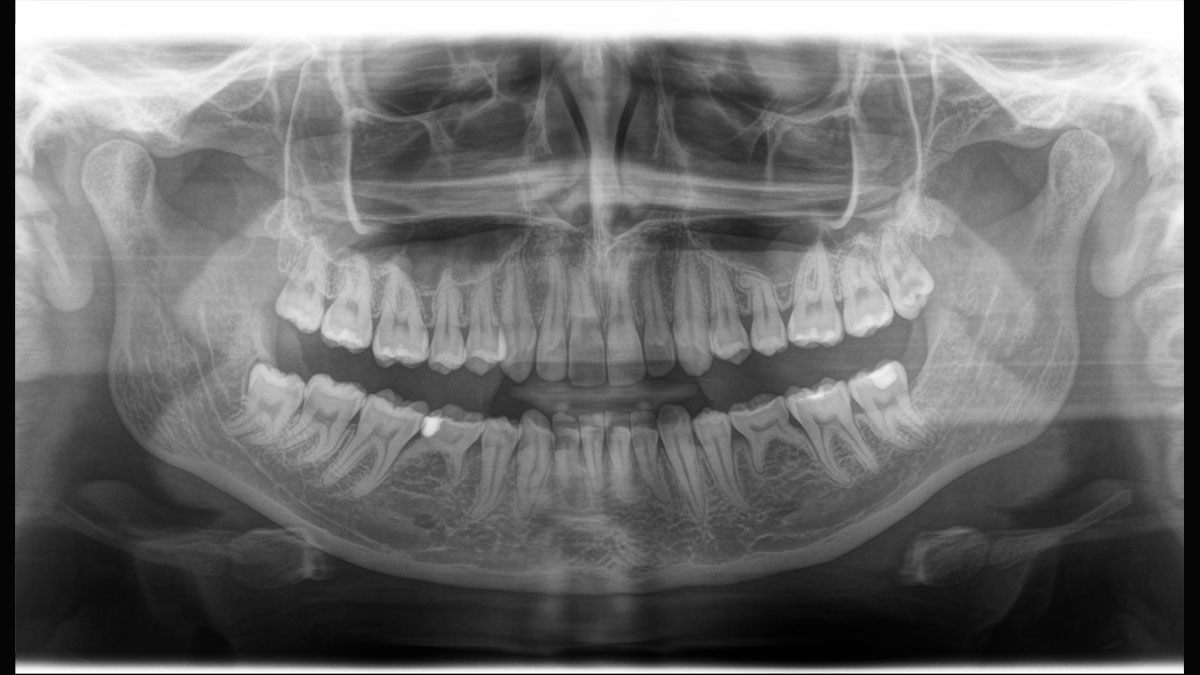

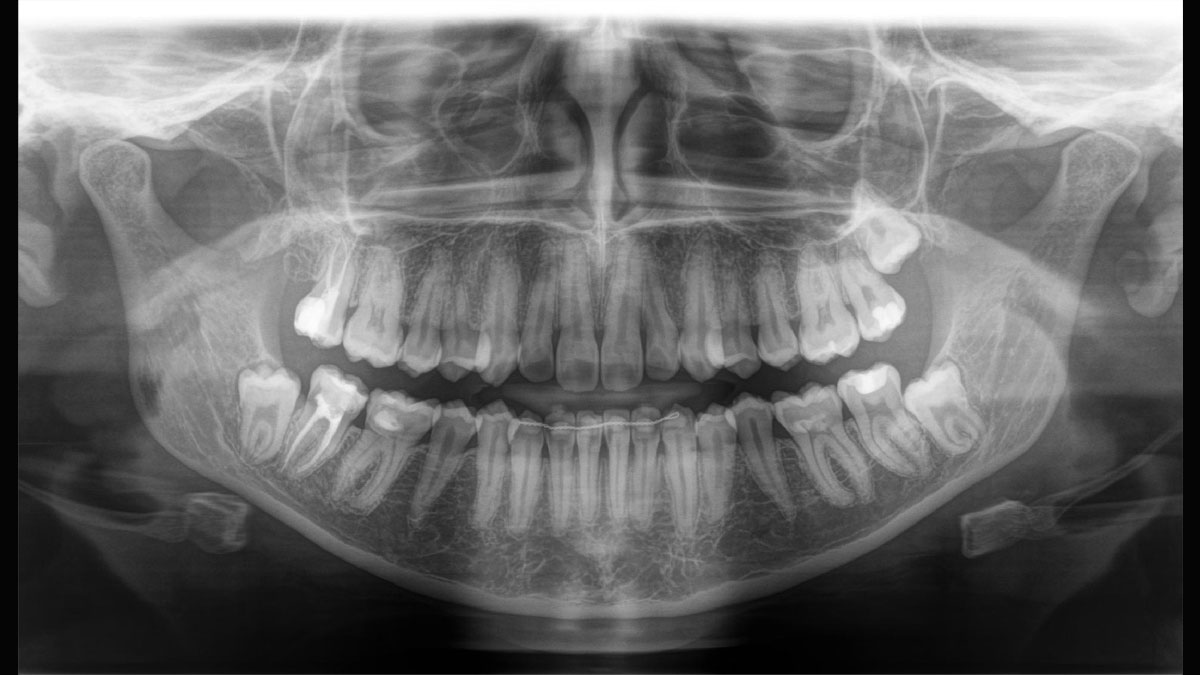

Gallery of Sample 2D Panoramic Images

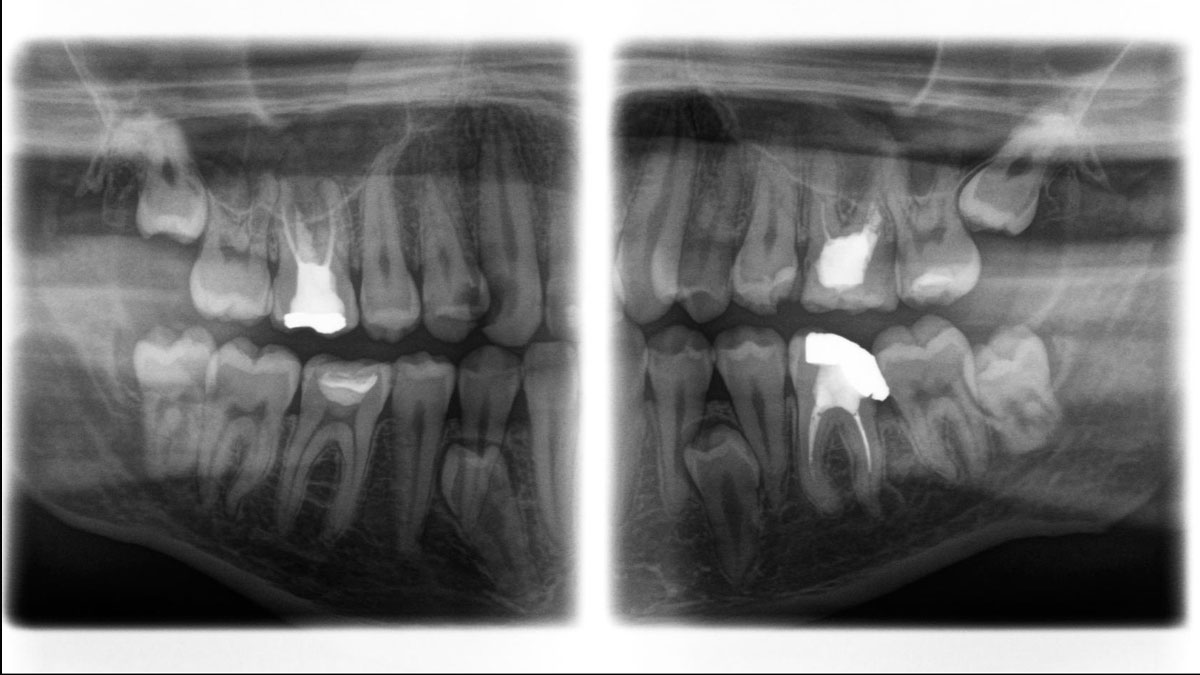

Dedicated programs for young patients: The horizontally and vertically reduced children's panoramic program delivers high-definition images at the lowest dosage
The quickshot feature reduces the capture time and dosage. This facilitates, for example, working with children in panoramic and ceph images

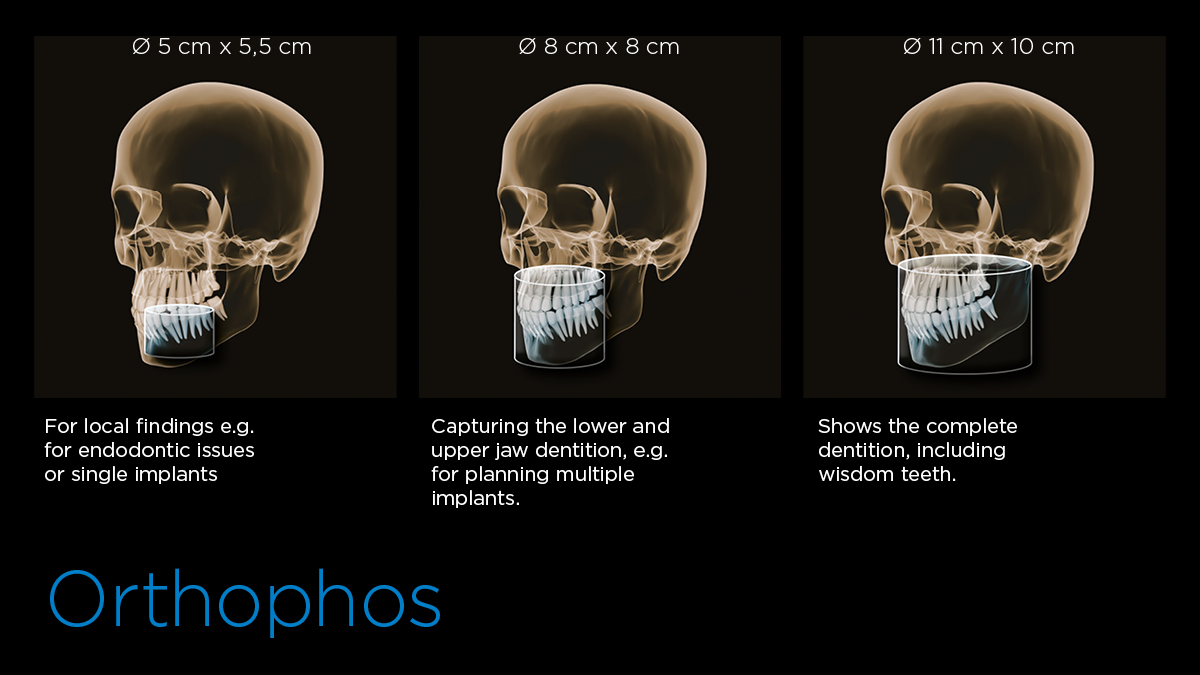

Volumes for a variety of indications with Orthophos SL 3D
A broad range of volume sizes to support your various diagnostic and clinical needs from Ø 5 x 5.5 cm to Ø 11 x 10 cm
Gallery of Sample 3D Images

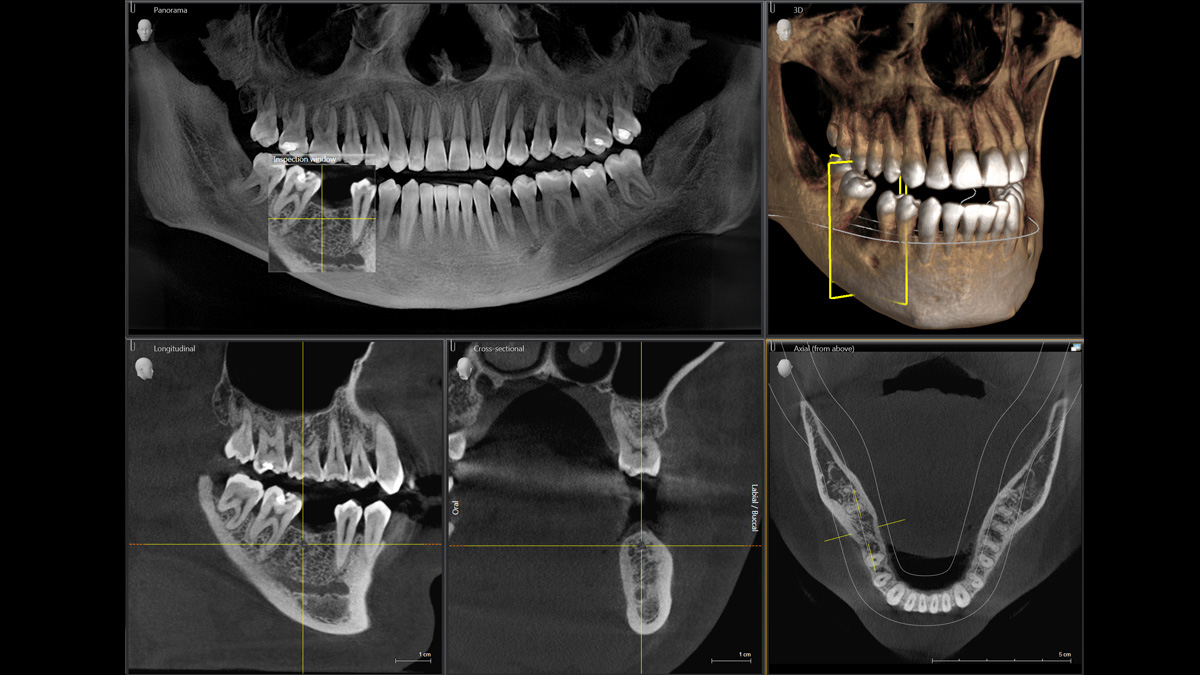

11 cm x 10 cm implant case

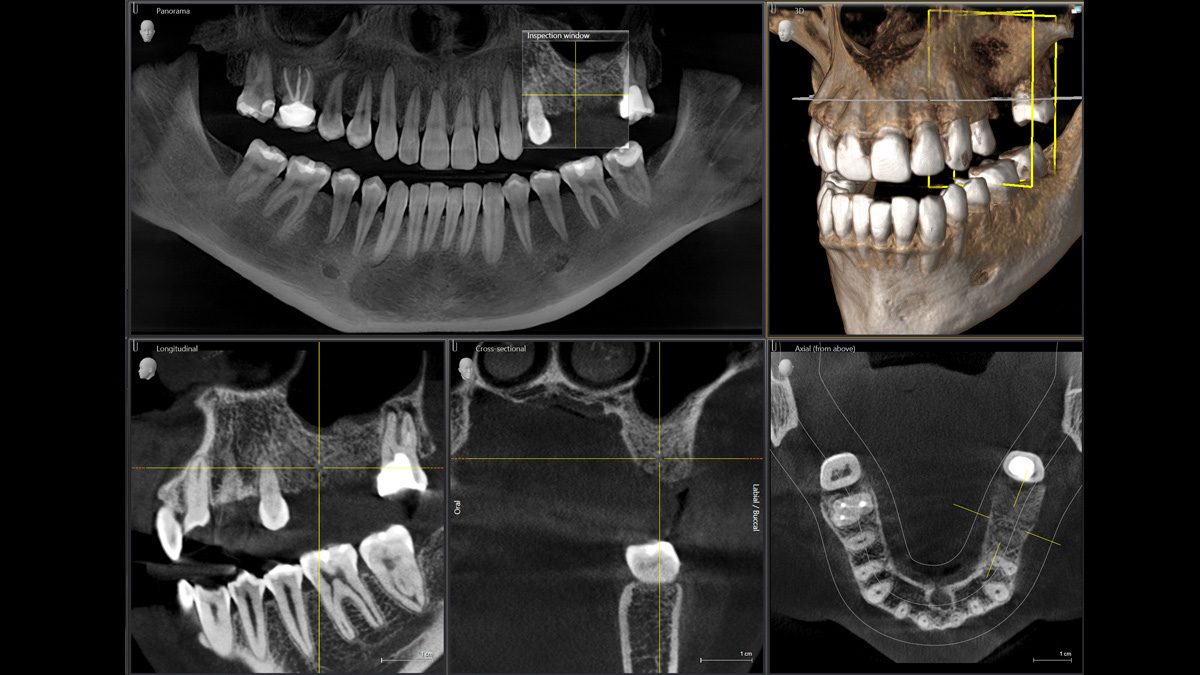

8 cm x 8 cm implant case
5 cm x 5.5 cm HD 80μm case

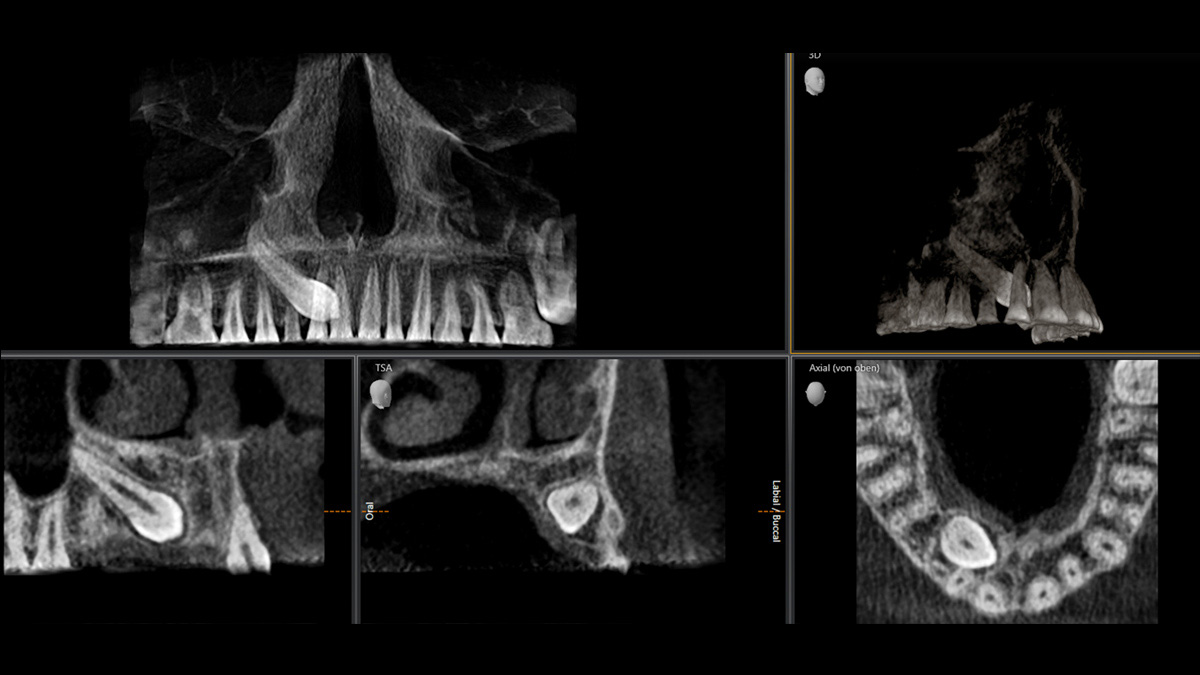

5 cm x 5.5 cm Low Dose volume, 3 μSv, displaced tooth case
MARS – Metal Artifact Reduction Software: Metal artifacts are a challenge in 3D X-ray imaging. Radiopaque objects create shadowing and streaking effects during the three-dimensional reconstruction and as such interfere with the findings. MARS automatically reduces metal artifacts and facilitates the diagnosis.

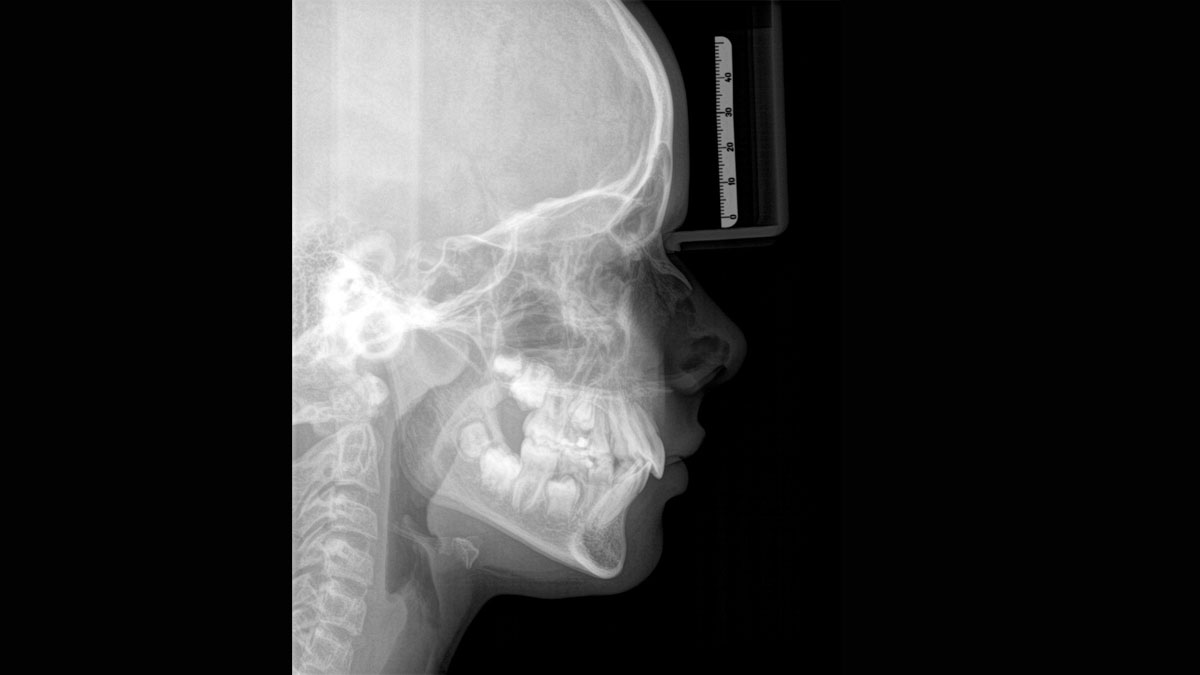

Sample Gallery of Cephalometric Images
Downloads
Further downloads are provided within our Download Center.
FAQs
For more details please see Sidexis 4 system requirements.

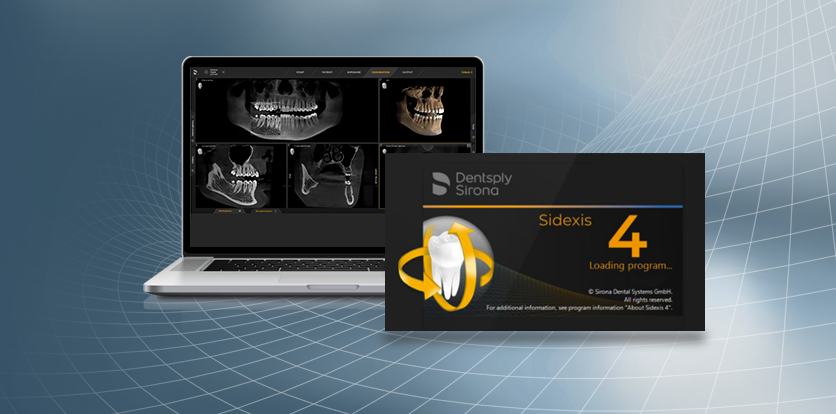

Dentsply Sirona x-ray units work exclusively with Sidexis 4. Nevertheless data migration from Sidexis XG to Sidexis 4 is very easy. Sidexis 4 allows for the full digital experience with the latest tools
Orthophos SL 2D and the Orthophos S 2D allow a 3D upgrade. Axeos is a dedicated hybrid unit. The Orthophos E does not offer this option.
