Benefits
Being a hybrid zirconia multilayer material, Cercon ht ML combines high flexural strength and natural tooth aesthetics in one disc with a gradient from 1200 MPa in the dentin up to 750 MPa in the incisal. It is recommended to nest the crown or bridge in the upper part of the disc to achieve the optimum aesthetic result. The graphic depicts layers of an 18mm Cercon ht ML disc.
The finishing of all-ceramic restorations is an essential component of aesthetics and quality. Cercon Multilayers can be finished with only a single glaze or by an individual characterisation with stains.

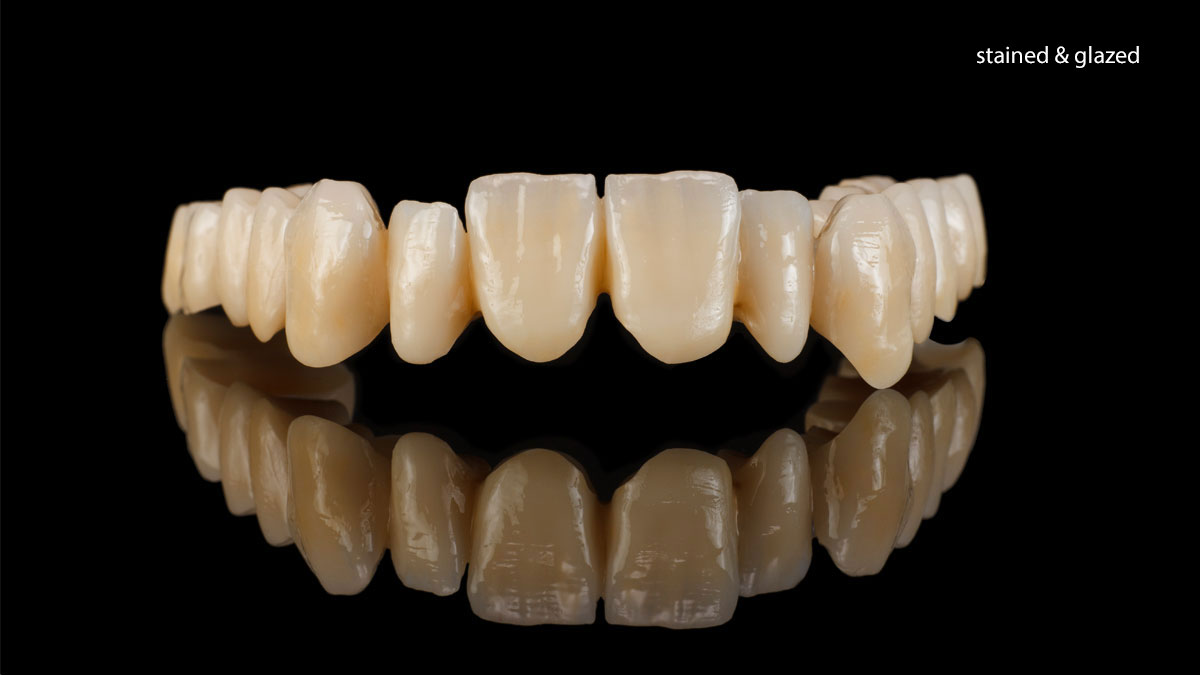

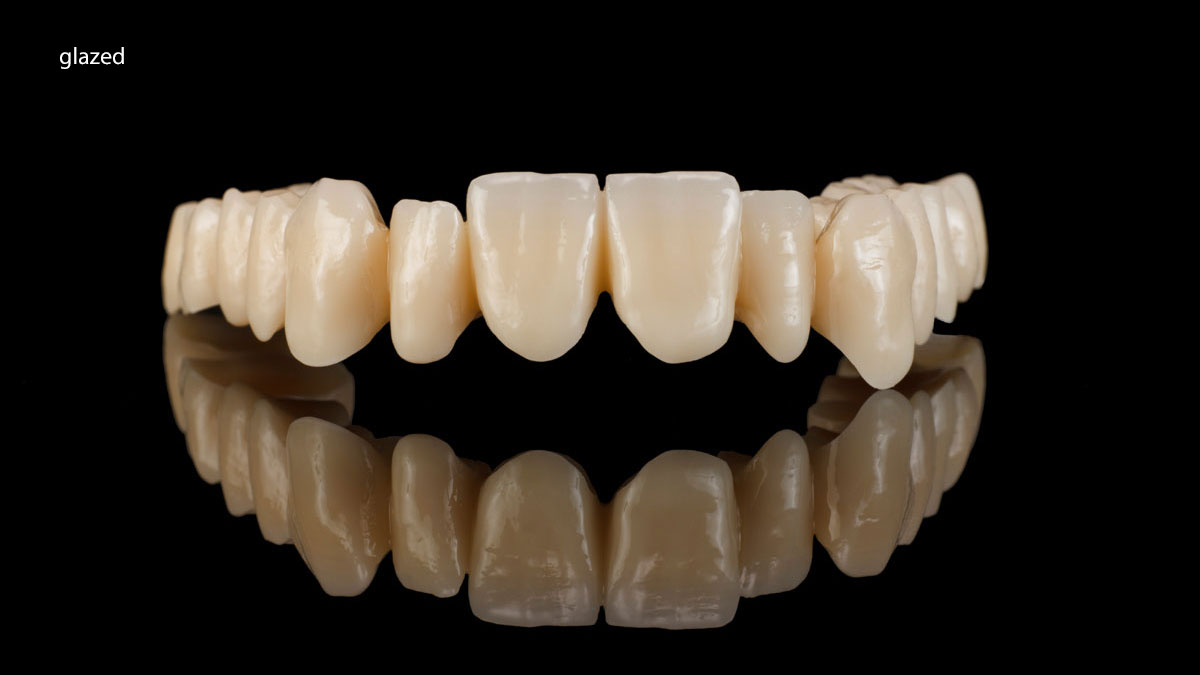

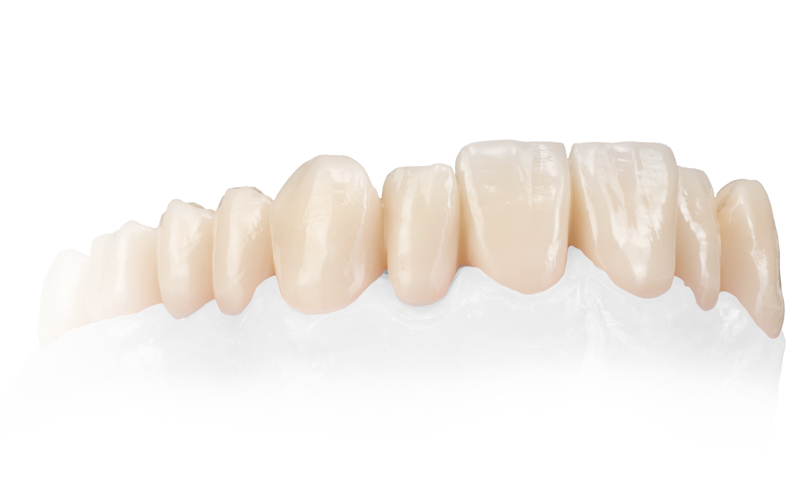

Examples: 14 unit bridge, milled in Cercon ht ML, Shade A2, finished with Dentsply Sirona Universal Stain & Glaze.
Composition (in % by mass)
Flexural strength: 750-1200 MPa
Translucency2: 41-49 %
CTE (coefficient of thermal expansion): 10.5 μm/m·K (25 – 500 °C)
Indications in the anterior and posterior segments: Cercon ht ML is indicated in the anterior and posterior segments for:
Cercon ht ML can be used as a substructure (framework) which is then veneered with a dental veneering ceramic or can be used for full-contour application (without veneering) as well.
In the case of telescopic primary crowns, the substructure is not veneered.
Sintering temperature: 1500 °C. Same firing programme as for all Cercon zirconia products. Speed sintering in 2 hours and 50 minutes
Adaptor ring: blue
True Colour Technology: yes
Shades: All 16 VITA®1 -shades + BL2

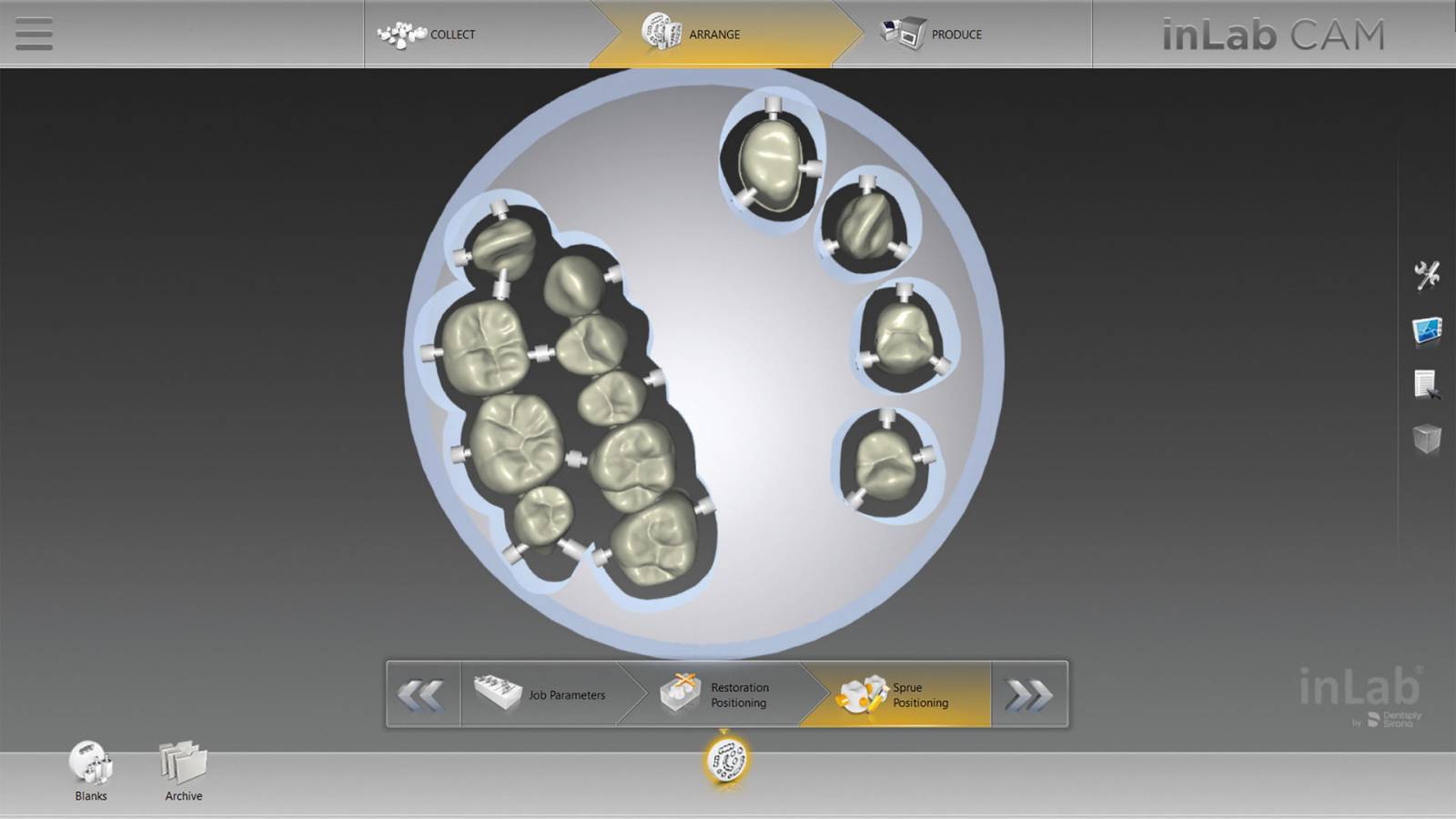

inLab SW 20.0: From version 20.0.1 part of the material library & nesting tool. Scanning via QR code.
Universal Stain & Glaze: Staining and overglaze for all-ceramics like all Cercon Zirconia materials.
Celtra Ceram: Veneering ceramic for all-ceramic frame materials like Cercon and Celtra Press.
Calibra Bio4 Cement: Bioceramic Luting Cement. Self-repairing hydroxyapatite (HA) layer. For long lasting marginal integrity, naturally. Part of the complete Calibra family of cements.
1 VITA is a registered brand of VITA Zahnfabrik GmbH
2 Translucency measured on a white disc with haze meter. Internal data on file. For more information, contact Consumables-Data-Requests@dentsplysirona.com
3 For Canada only
4 Not available in every country; please contact your local Dentsply Sirona representative
