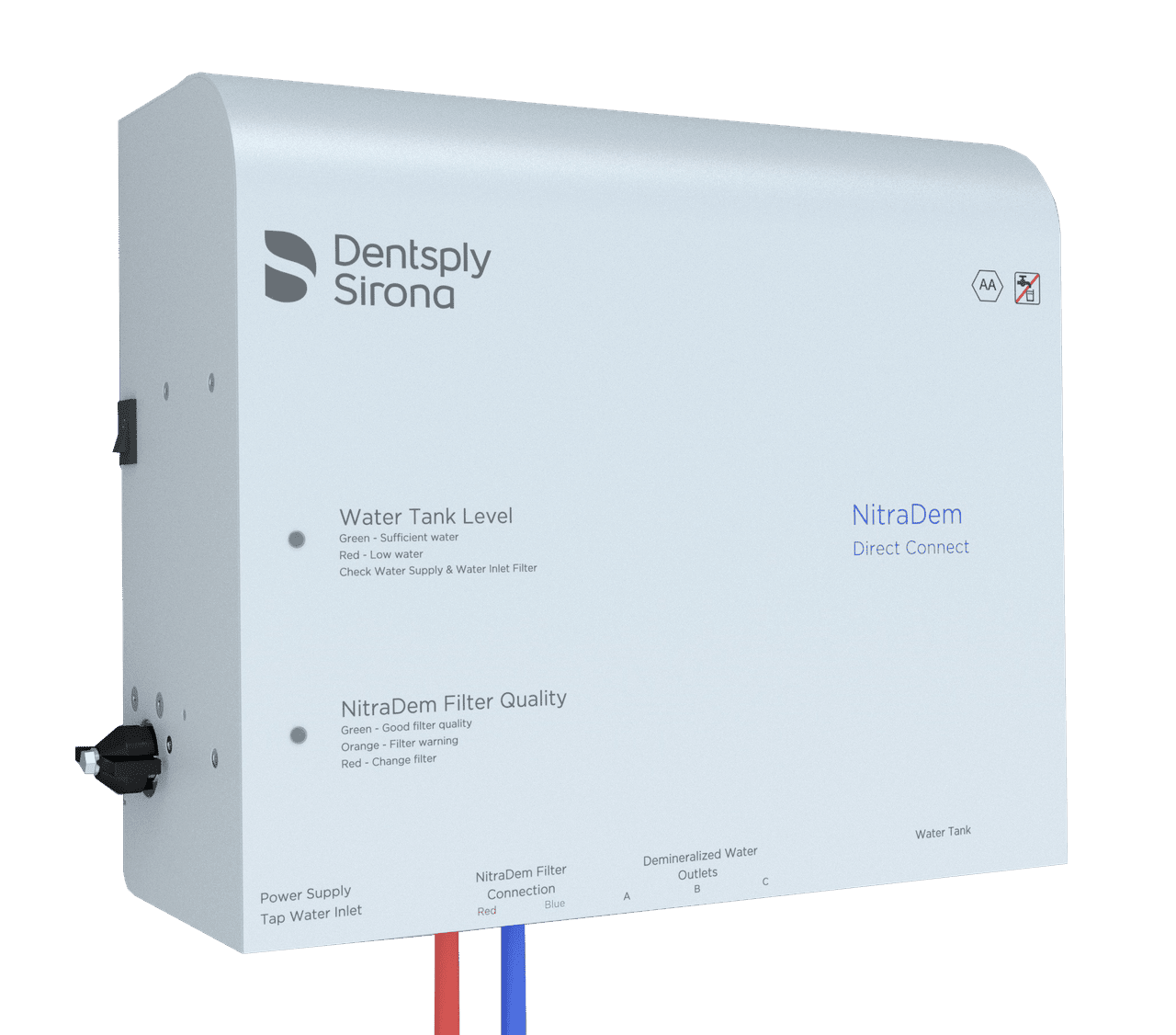

Water treatment system with direct connection
The NitraDem Direct Connect 2 system supplies high-quality demineralized water to the DAC Universal D as well as DAC Universal S and any other autoclave at low cost. This highly efficient water treatment system works fully automatically and complies with the European standard EN 1717-5 that allows a direct connection between water supply and autoclaves e.g. DAC Universal S as well as DAC Universal D. NitraDem Direct Connect 2 supplies up to three machines with purified water, one of which can be fitted with an integrated suction pump, e.g. DAC Professional, DAC Professional Plus, DAC Premium or DAC Premium Plus.
Benefits
Why choose NitraDem Direct Connect 2?
Direct water connection
EN 1717 Category 5-compliant for direct connection. Water available on demand to all connected infection control system.
Three water outlets
Connection of up to three infection control systems simultaneously.
Easy handling
Simple filter replacement. Compatible with DAC Universal D, DAC Universal S and all standard sterilizers.
Continuous control
Always the right water quality. No quality loss due to storage. Water conductivity is continuously monitored.
Price efficient
NitraDem Connect 2 is not only the easiest but also the cheapest solution compared to other mixed bed systems.
Demineralized water available on demand
Always the right water quality with a direct water connection. No quality loss due to storage. Water conductivity is continuously monitored.
Filters
The new easy-to-replace NitraDem filters function according to the ion-exchange principle. The capacity of the NitraDem filters varies according to the hardness/softness of the tap water. The softer the tap water, the larger the capacity of the NitraDem filter.
Technical Details
The capacity of the NitraDem filters varies according to the hardness / softness of the tap water. The softer the tap water, the larger the capacity of the NitraDem filter.
| NitraDem Mini Filter | NitraDem Long-Life Filter |
REF | 66 93 209 | 66 93 217 |
Dimensions in cm (H x W x D) |
| 27.6 x 27.9 x 26.8 |
Weight |
| 6.75 kg |
Capacity at 50 μS/cm inlet water purity |
| 5,000 liters |
Capacity at 500 μS/cm inlet water purity | 180 liters | 360 liters |
With the new generation NitraDem filters the NitraDem Direct Connect 2 is not only the easiest solution, but also the cheapest solution compared to other mixed bed systems.
Price per cycle* (0.7 liters/cycle)
| NitraDem Mini Filter | NitraDem Long-Life Filter |
Outlet limit purity | 3 μS/cm |
|
Inlet water 50 μS/cm | € 0.03 | € 0.03 |
Inlet water 500 μS/cm | € 0.45 | € 0.36 |
System setup
NitraDem Direct Connect 2 has three water outlets, from which demineralized water is available at a pressure of 5-6 bar. At outlet A an infection control system can be optionally connected with or without a water suction pump. The system is not recommended for connection to cleaning and disinfection devices. Water outlets B and C are used to connect infection control systems without a water suction pump, e.g. water pistol, DAC Universal S.
