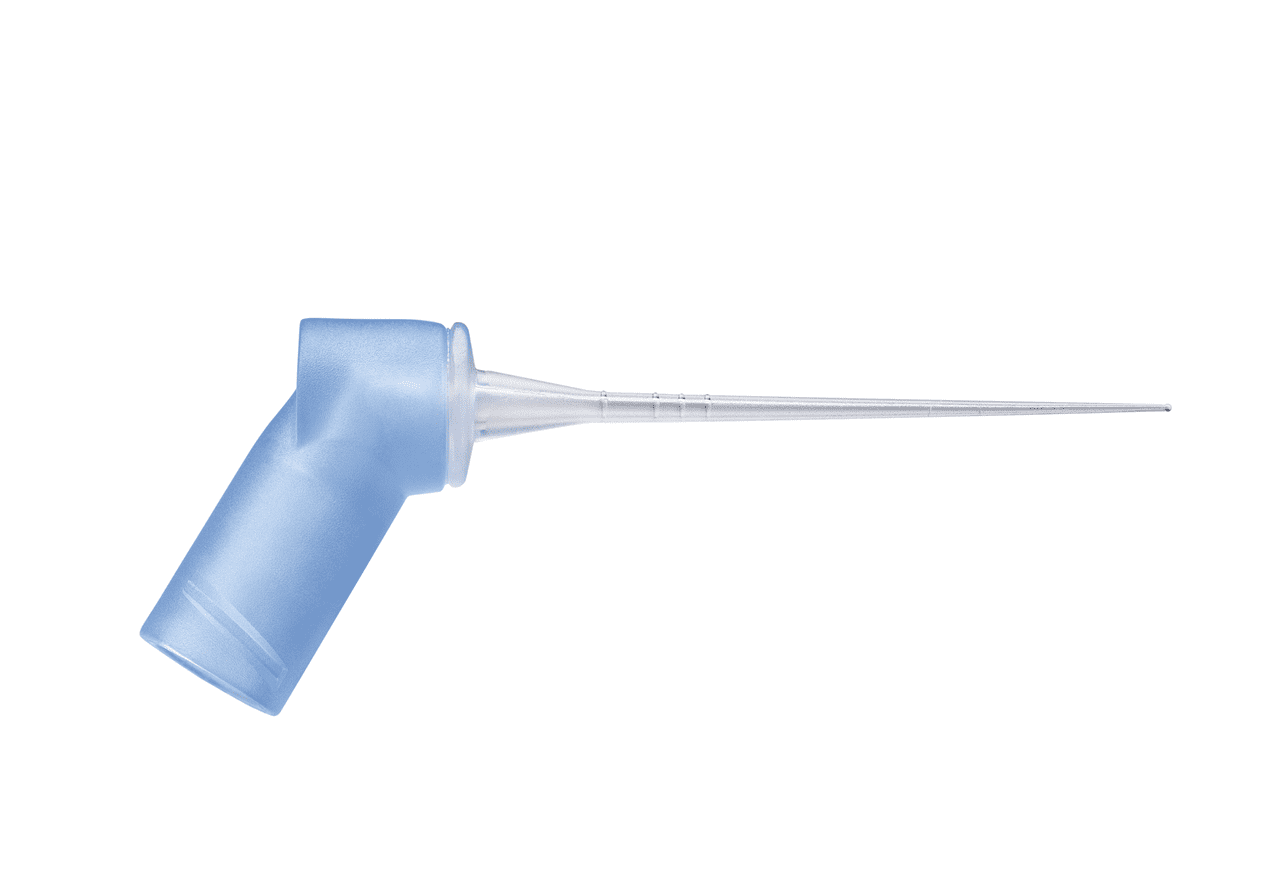

Irrigation Needle™
Irrigation is a crucial step in root canal treatment. Regardless of the file system being used, up to 35 % of the canal walls remain untouched by instruments1 after preparation. Thus, removal of smear layer and biofilm as well as disinfecting the root canal before filling are key for a successful endodontic treatment.

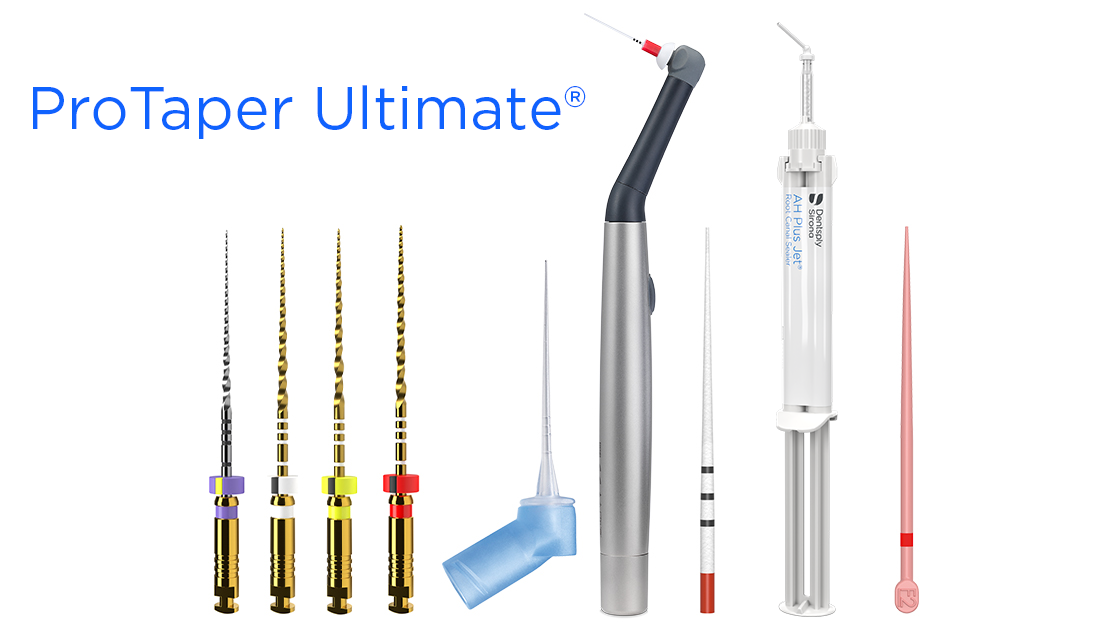

The Irrigation Needle™ is designed to complement your endodontic procedure for an efficient cleaning and disinfection to the apex. It can be used with our three major shaping solutions: TruNatomy®, ProTaper Ultimate™ and WaveOne® Gold.
Benefits
Why choose the Irrigation Needle™?
Balanced irrigation volume
aiming at the dentinal walls
Efficient cleaning to the apex
Designed to follow the natural shape of the canal
Maximised elimination
of debris, smear layer and biofilm
Atraumatic
for hard tissue
Follows the root canal for an atraumatic procedure
- 60° angulation
- Clearly visible depth indications
- 4 % taper to match the conical shape of the canal
- 27 mm working length
- Back-to-back side vent design
- 30 gauge closed end tip
- Soft and flexible polymer to follow the root canal anatomy
- Luer Lock connection
"With today's faster shaping, irrigation becomes more important than ever. Dentsply Sirona's unique polypropylene tapered Irrigation Needle™ with double sided vents allows safe delivery of irrigation solutions in the apical area of curved canals."
Dr. Marc Habib, Lebanon
"Irrigation feels like never before! The soft and flexible polypropylene Irrigation Needle™ follows the canal anatomy effortlessly until the apical area and supports safe debridement. The needle makes irrigation simple, effective and even more successful."."
Dr. Krishna Vyas, lndia
Learn more about Dentsply Sirona's Irrigation Needle™
Downloads
Further downloads are provided within our Download Centre.
FAQs
It is a closed ended, flexible plastic needle with two ports located at 180⁰ from each other. Due to its flexibility and adaptability, the Irrigation Needle can go around curves with less resistance and greater ease.
Clinicians can continue to utilise any irrigation method they currently use in their practice.
The Irrigation needle is intended to be used with the following irrigation solutions: stabilised sodium hypochlorite up to 6%, EDTA 17%, Chlorhexidine digluconate 2%, Citric Acid up to 40%, Dual Rinse® HEDP.
Make sure the irrigation solution has been properly stored to avoid the formation of any crystal which could block the vent of the needle.
Such accidents happen rarely in endodontics and is something we all wish to avoid. It is not the canal size, but the placement and movement of the irrigation needle, volume/time delivery ratio of irrigation solution and failure to identify resorption and perforations prior to initiating irrigation protocols. Also, open ended needles deliver irrigation solution ahead of the needle tip and without backflow. This is one of the most likely scenarios leading to irrigation accidents. With slight needle movement and expression of the solution on the outstroke, irrigation accidents are easily avoided.
We know from clinical experience and dental anatomy literature that canal lengths, from orifice to apex, are between 9 - 12mm with a maximum length of 15mm (resulting in thirds of 3 - 4 or occasionally 5mm each). With a crown length of 10 - 12mm, most canals can be irrigated with relative ease.
Irrigation solutions such as sodium hypochlorite should have tissue contact times of 20 to 30mins to aid in the removal/digestion of tissue and disinfection.
Irrigation protocols recommend final use of bleach and EDTA in the range of 30 - 60s per canal.
It is important to have a light-handed delivery and ensure that irrigation solutions are not delivered with pressure or during needle engagement. Injecting solution with a needle wedged into the root canal raises the possibility for an irrigation accident. Therefore, we recommend advancing the needle apically in 2 - 3mm inward strokes and delivering the solution on a 1 - 2 mm outstroke to avoid pressure and permit backflow.
In order to place the 30G Irrigation Needle™ we recommend a minimum preparation size of ISO 25.
An open ended needle, while sending a flow apically more effectively is also much more dangerous regarding irrigation mishaps. A needle with lateral ports of exits offers a better safety margin.
Related Products
1 Peters 0. A., Schonenberger K., Laib A. Effects of four Ni-Ti preparation techniques on root canal geometry assessed by micro computed tomography. International Endodontic Journal, Volume 34, 221-230, 2001
