Primeprint

Indications & Materials

A wide range of applications with intelligent material management

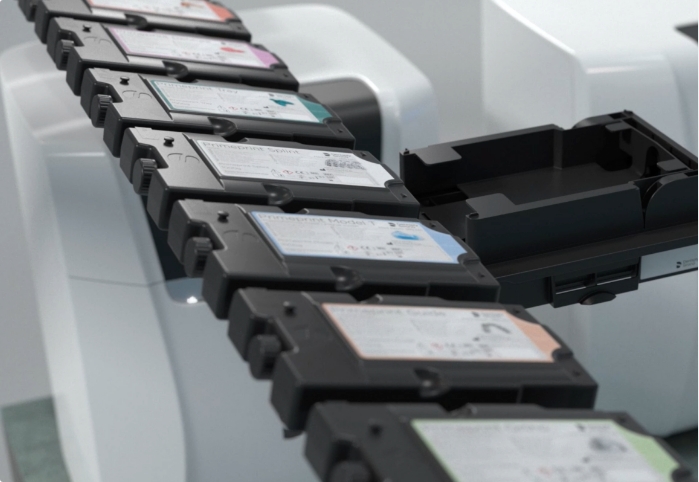

Primeprint comes with validated materials and RFID-supported, automated material management. The Primeprint material concept offers user-friendly support with its color-coded material cartridge system. Each print material type is associated with a different color, which is mirrored in the inLab CAM Software for quick orientation, for correct material selection, and easily identifiable storage. Once the cartridge is inserted into its Material Unit, the inLab CAM Software automatically pairs and identifies them as a unit. Thanks to the RFID tags, the software monitors the fill level of each Material Unit to indicate when a replacement is required.

LEARN MORE

Materials

Please visit the Download Center for IFUs.

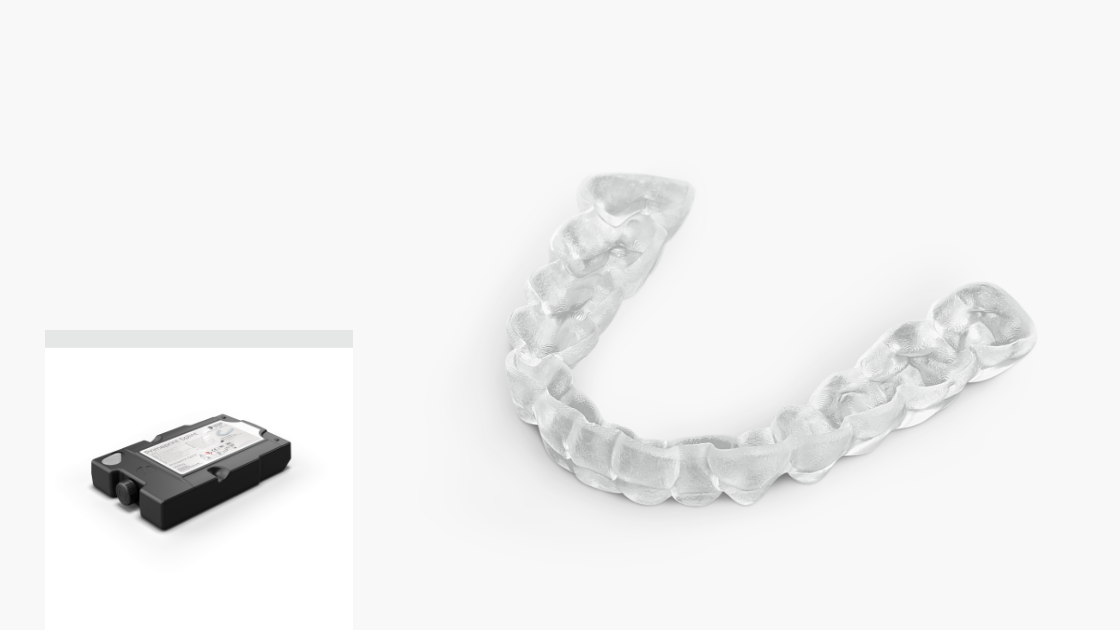

Primeprint Splint

Application:

Hard splints

Characteristics:

  • Minimum wall thickness: 1.5 mm
  • High mechanical flextural strength and stability
  • High initial final hardness
  • Biocompatible
  • Low flexibility & high hardness

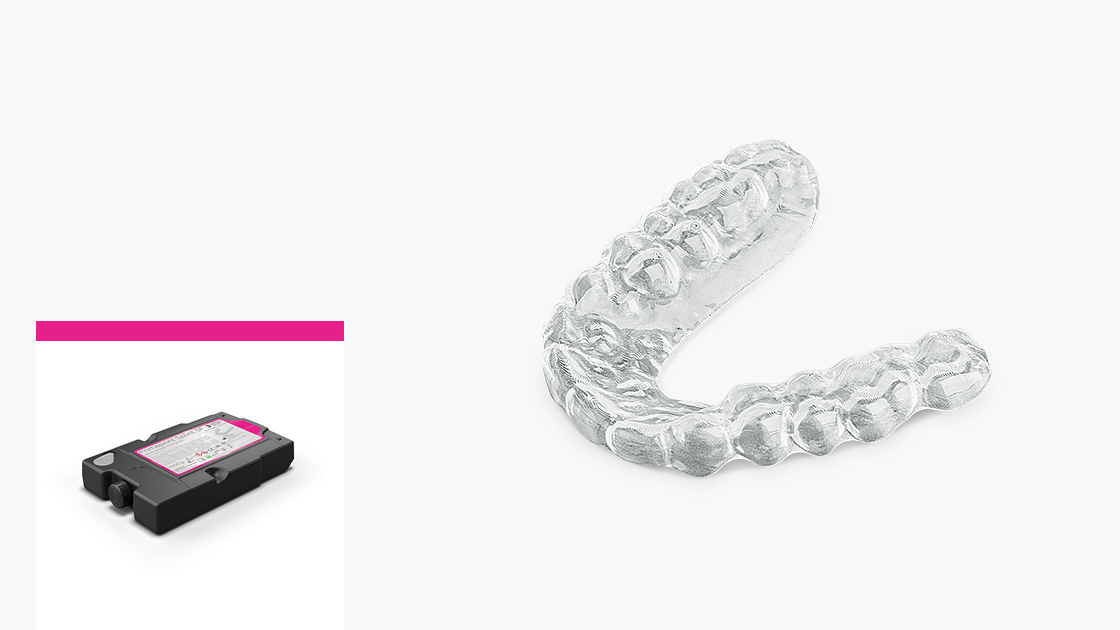

Primeprint Splint SF

Application:

Flexible splints, repositioners, mouthguards, nightguards

Characteristics:

  • Minimum wall thickness: 1 mm
  • Flexible and fracture-resistant
  • High, tension-free wearing comfort
  • Easy to polish
  • MMA-, THF-MA- and TPO-free, tasteless
  • Biocompatible
  • Compatible with Material Unit Type S
  • High flexibility & low hardness
  • FDA listed for the use as Retainer

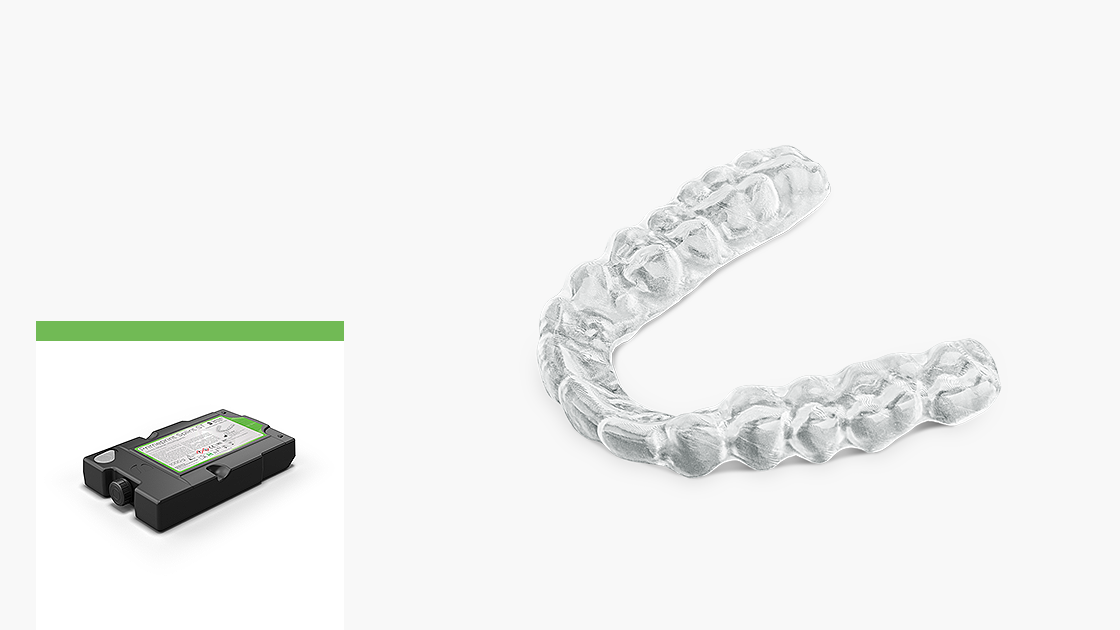

Primeprint Splint ST

Application:

Flexible splints, repositioners, mouthguards, nightguards

Characteristics:

  • Minimum wall thickness: 0.8 mm
  • Flexible and fracture-resistant
  • High, tension-free wearing comfort
  • Easy to polish
  • MMA-, THF-MA- and TPO-free, tasteless
  • Biocompatible
  • Compatible with Material Unit Type S
  • Medium flexibility & medium hardness
  • FDA listed for the use as Retainer

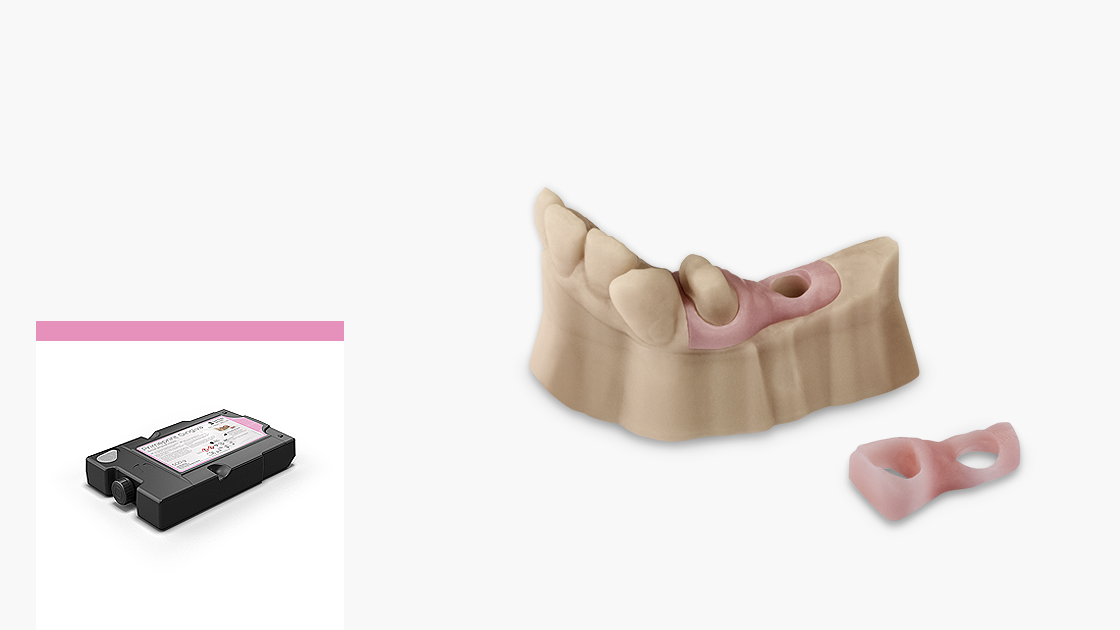

Primeprint Gingiva

Application:

Gingiva mask

Characteristics:

  • Permanently soft and flexible
  • Excellent combinable with working models made of Primeprint Model

Primeprint Model C

Application:

Situation, working models and thermoforming models

Characteristics:

  • Combines usability for thermoforming, working and situation models in one cartridge
  • Model manufacturing in <1 hour: Enables the fastest manufacturing processes for models amongst the different model materials for Primeprint
  • High temperature resistance
  • Bisphenol A-, MMA-, THF-MA and TPO-free

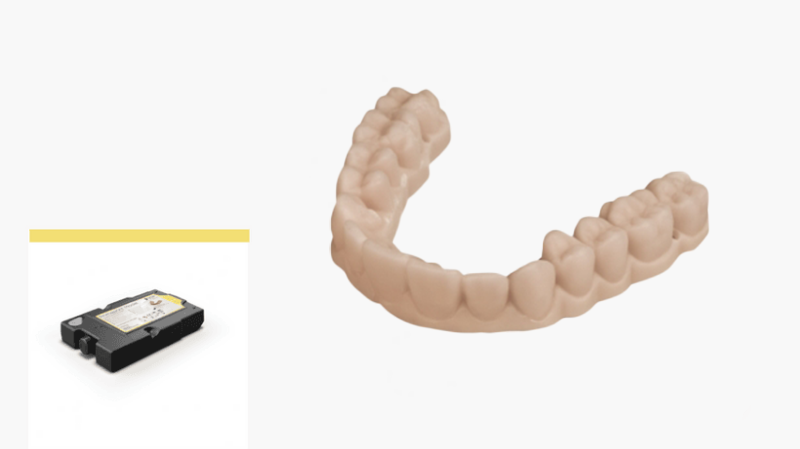

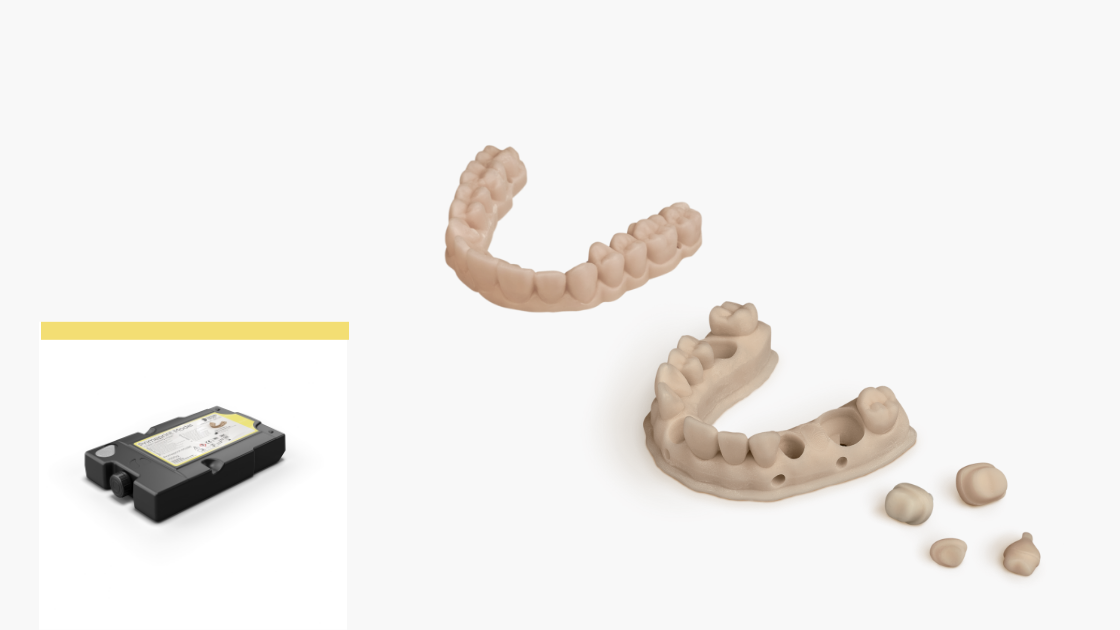

Primeprint Model

Application:

Working models, situation models, control models

Characteristics:

  • High detail reproduction
  • High surface hardness and dimensional stability
  • Plaster-like appearance and haptic
  • Very good construction precision

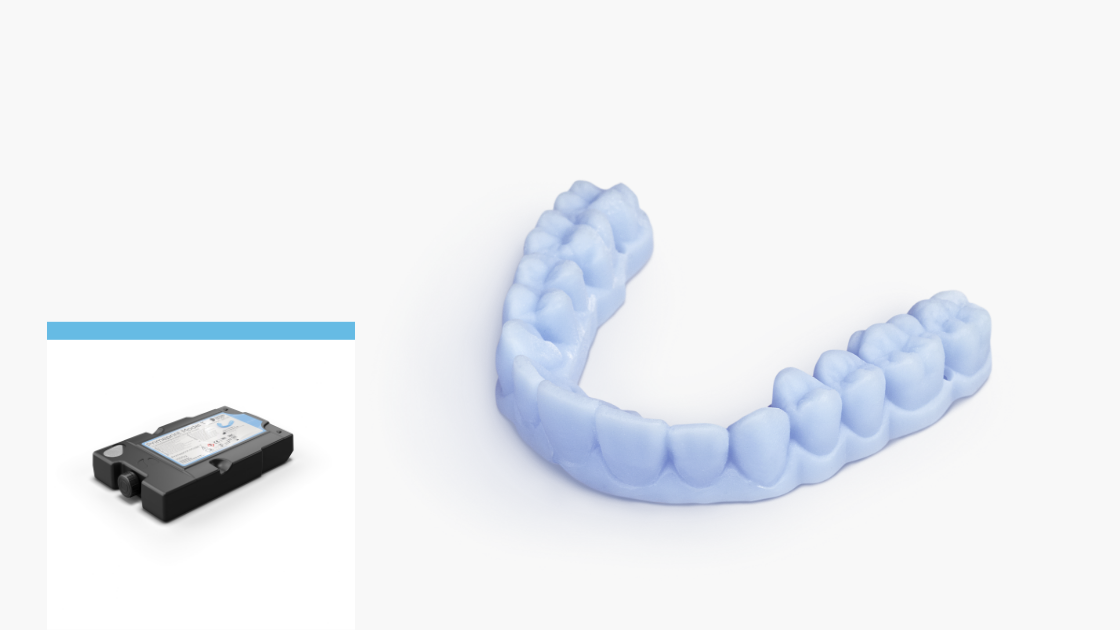

Primeprint Model T

Application:

Thermoforming models

Characteristics:

  • High temperature resistance to process-related temperature stress
  • High edge strength

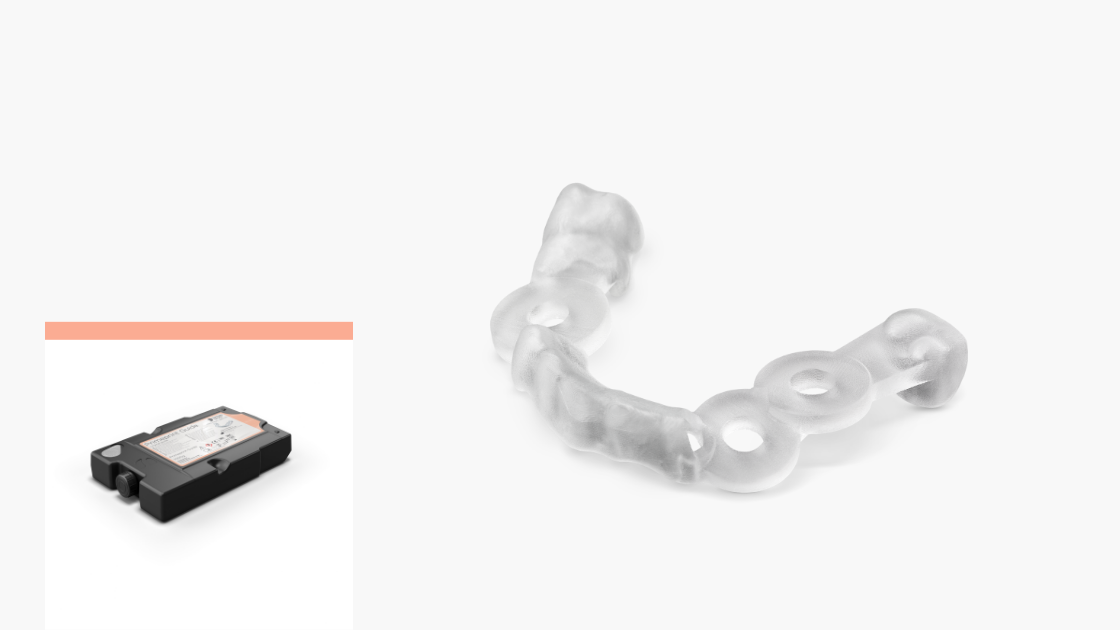

Primeprint Guide

Application:

Surgical guide

Characteristics:

  • Very high mechanical stability and construction precision
  • High printing speed
  • Sterilizable
  • Biocompatible

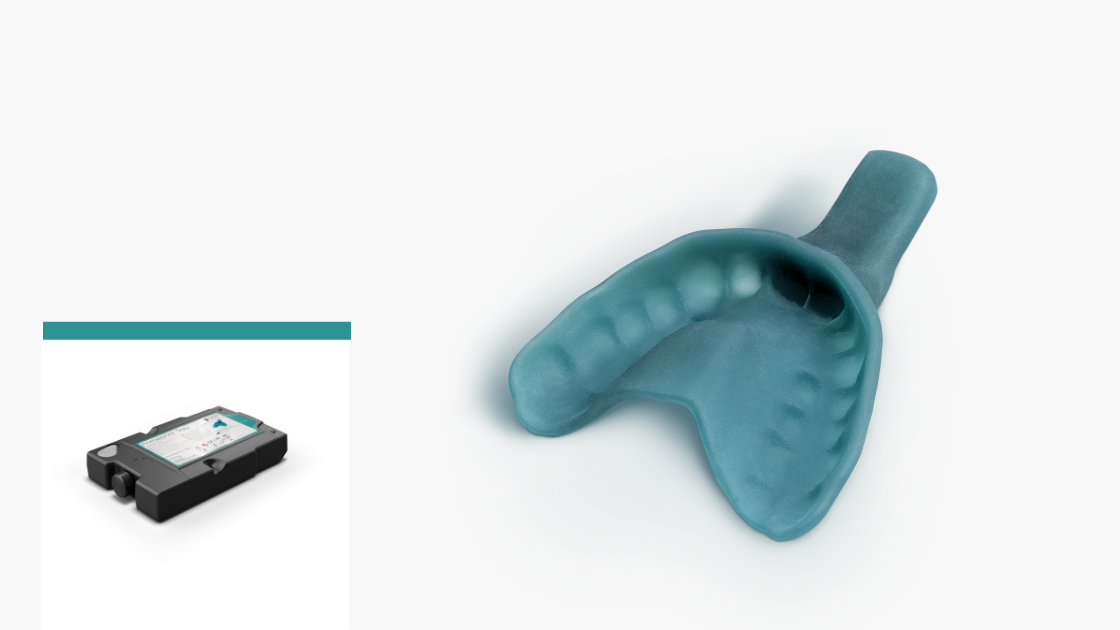

Primeprint Tray

Application:

Individual impression trays

Characteristics:

  • High dimensional stability, torsional rigidity
  • High construction speed
  • Compatible with all impression materials
  • Biocompatible

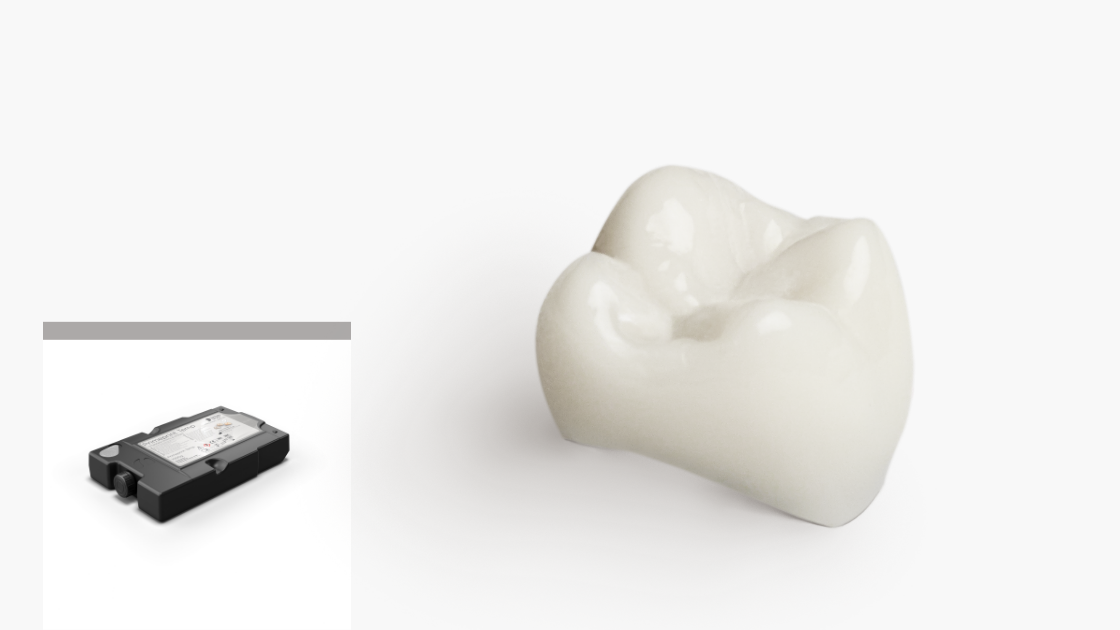

Primeprint Temp

Application:

Temporary anterior and posterior tooth restorations

Characteristics:

  • Natural transparency and tooth esthetics
  • Extremely high construction precision
  • High mechanical stability
  • Biocompatible

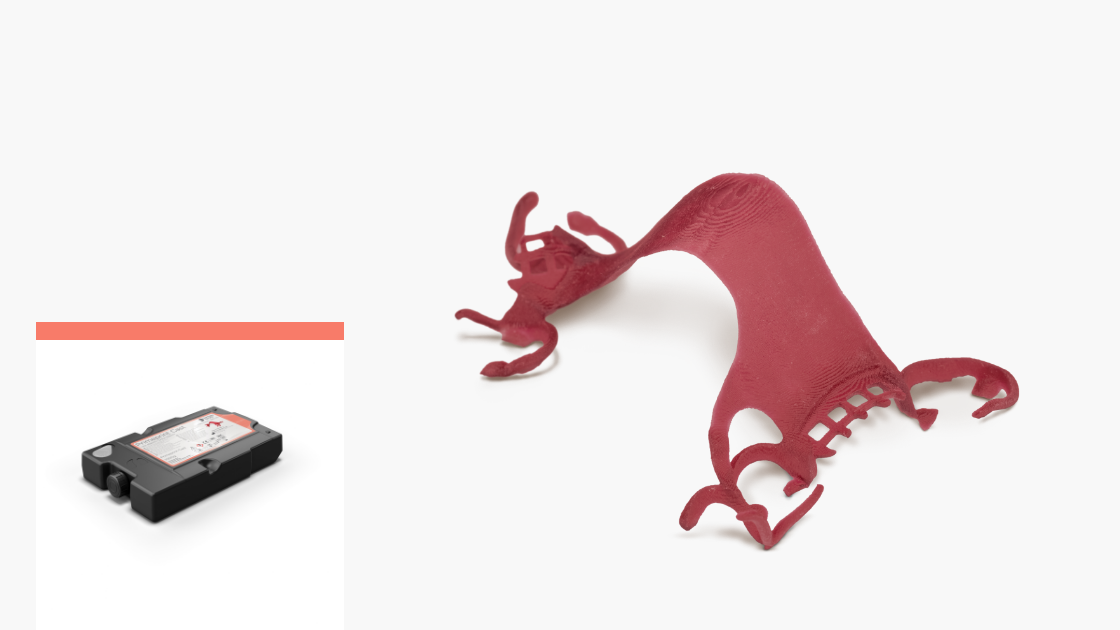

Primeprint Cast

Application:

Dental casting objects for precision casting

Characteristics:

  • Residue-free burning out
  • High dimensional stability after printing
  • Precise and distortion-free results, even for delicate constructions

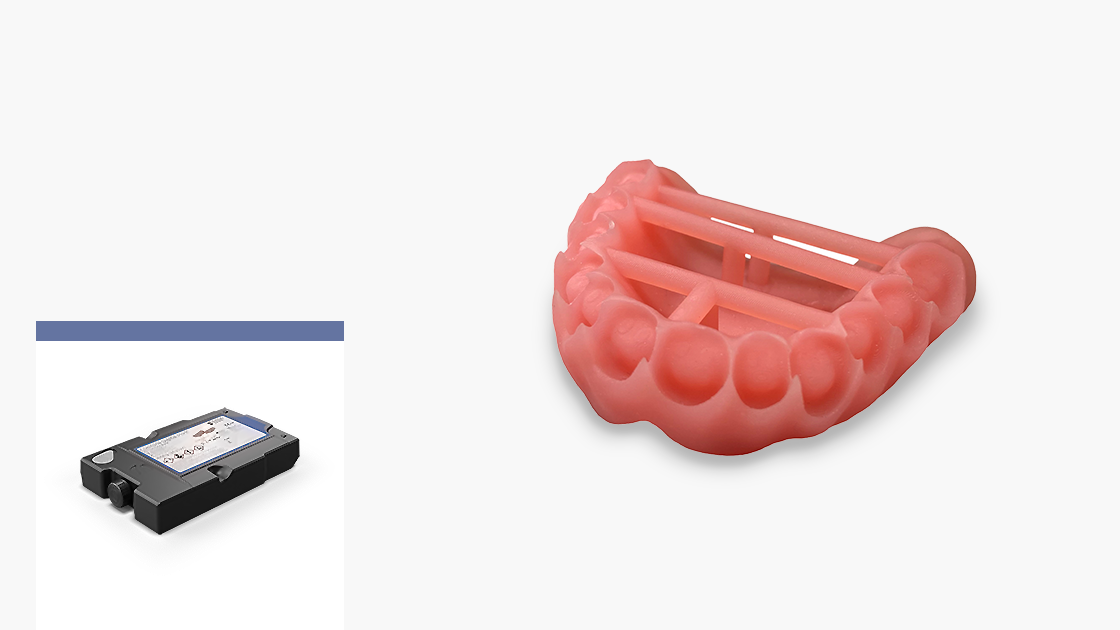

Lucitone Digital Print™

Application:

3D denture base

Characteristics:

  • High impact denture base material
  • Ensuring optimal fit, function and comfort
  • 4 gingiva shades

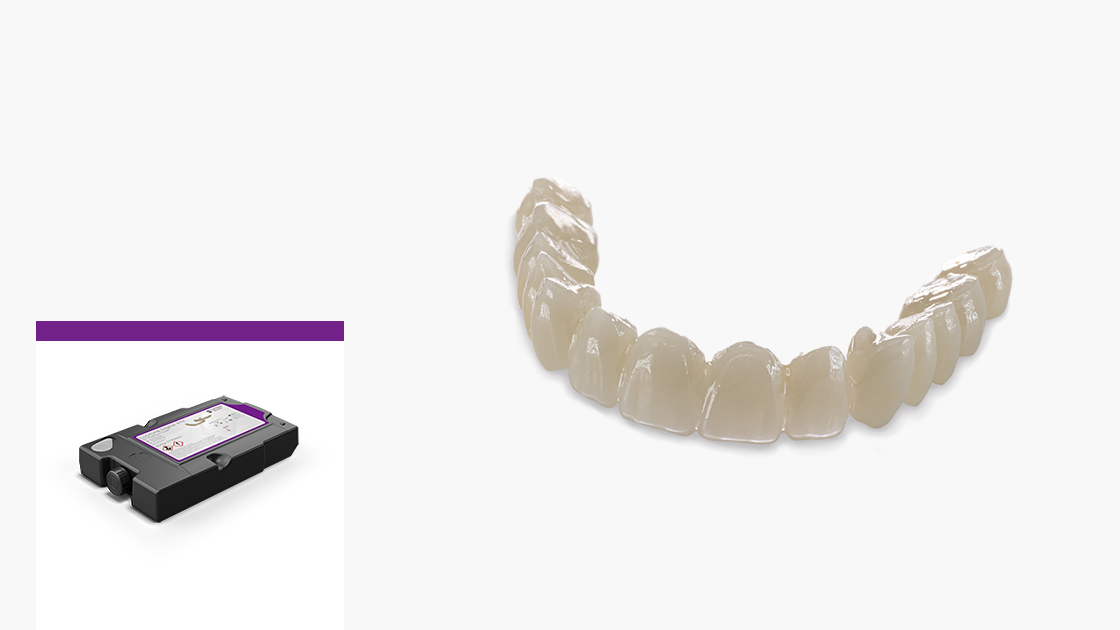

Lucitone Digital IPN™

Application:

3D premium tooth

Characteristics:

  • Premium denture tooth
  • Excellent wear resistance
  • Highly esthetic
  • 8 tooth shades

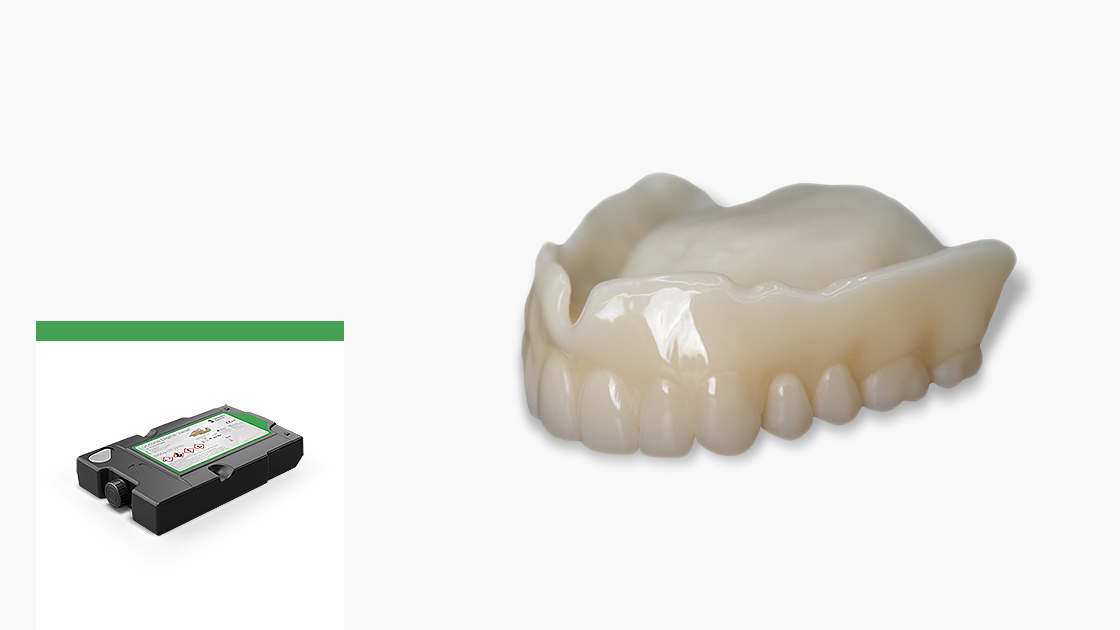

Lucitone Digital Value™

Application:

Try-in

Characteristics:

  • For full-over-full and single-arch cases
  • Available in Shade A1

Material Units

Primeprint’s material concept includes a Material Unit for holding the material cartridges – one cartridge for each application. The Primeprint Material Unit consists of the vat and the insertion slot for the material cartridge. The cartridge clicks into the Material Unit with a hand movement. Both the vat and the material cartridge are fitted with RFID tags. Once assembled, the software automatically pairs them and identifies them as a unit.

The Primeprint Material Unit and Material Unit Type S consist of the vat and the insertion slot for the material cartridge. Material Unit Type S enables transparent printing results and is used for printing of Primeprint Splint ST and Primeprint Splint SF. The cartridge clicks into both types of Material Units with a hand movement.

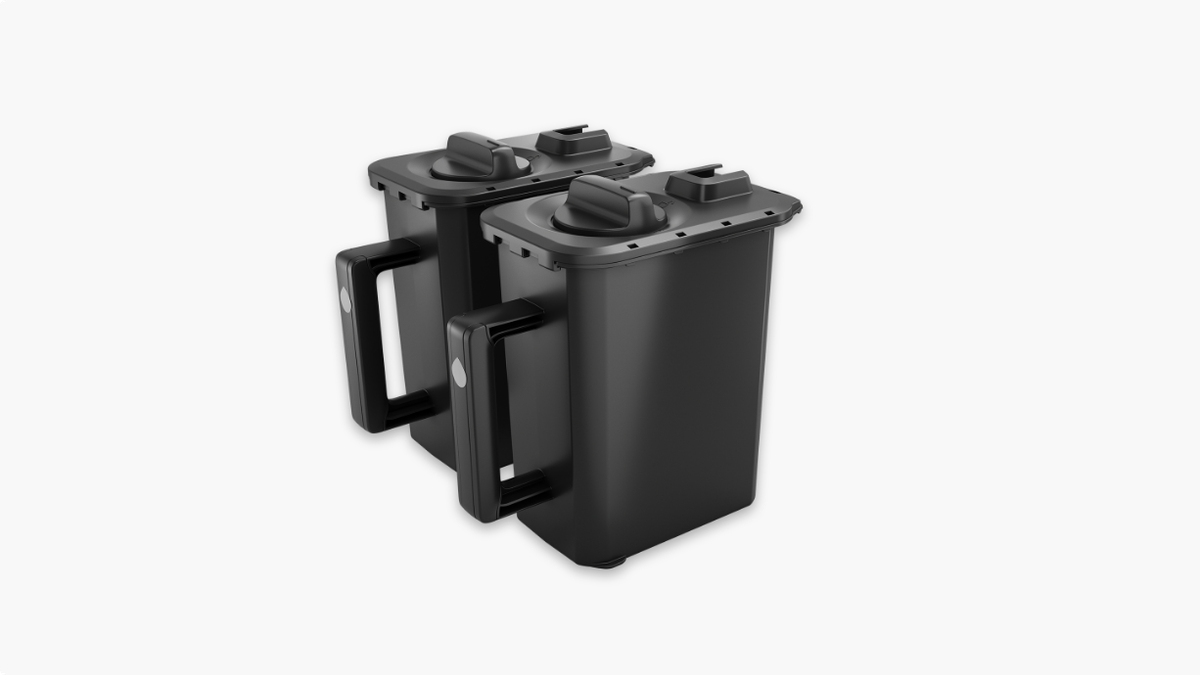

Washing Containers

The consecutive pre- and final washing cycles in Primeprint PPU use cleaning agent in the two integrated washing containers to remove liquid resin residues from the printed objects. Each material has two washing containers assigned to avoid cross-contamination. The inLab CAM Software automatically tracks the washing cycles of each container via the RFID tags, monitors the lifetime of the cleaning agent, and automatically alerts the user in case a cleaning agent must be exchanged.

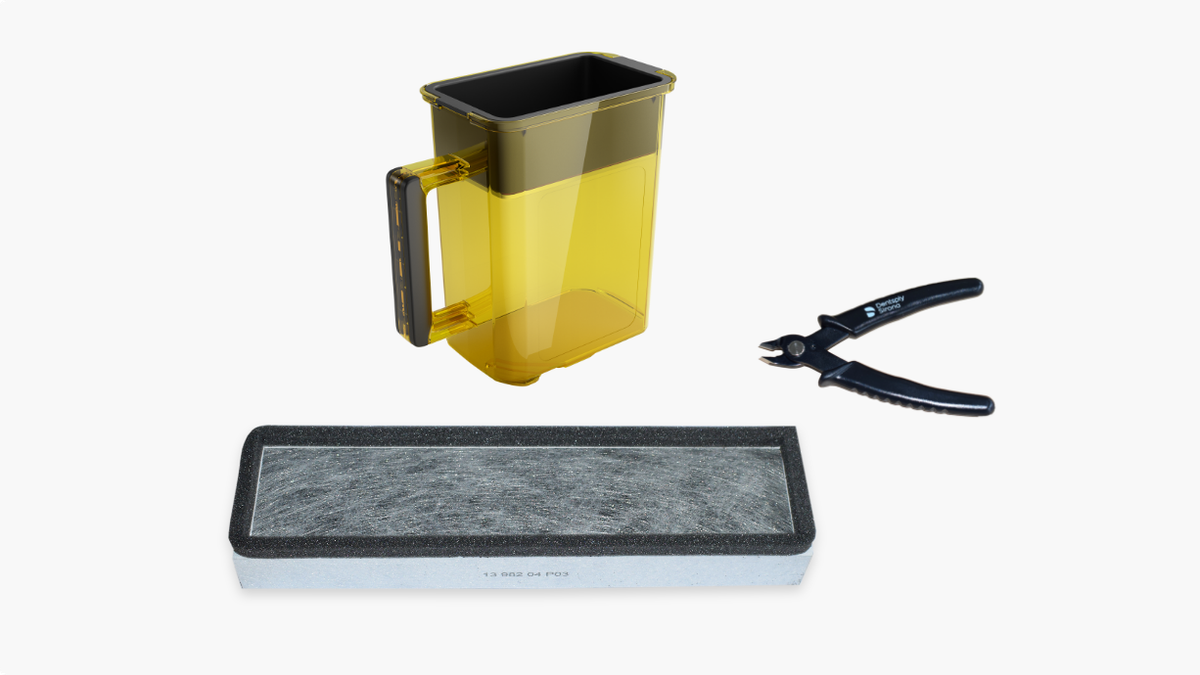

Accessories for Primeprint and Primeprint PPU

In addition to materials, there are various accessories available for Primeprint Solution. From Primeprint Box to activated carbon and ozone filters, users can order additional hardware items or replacements for both Primeprint and Primeprint PPU.
