Reach out for more information on Multimat Cube.

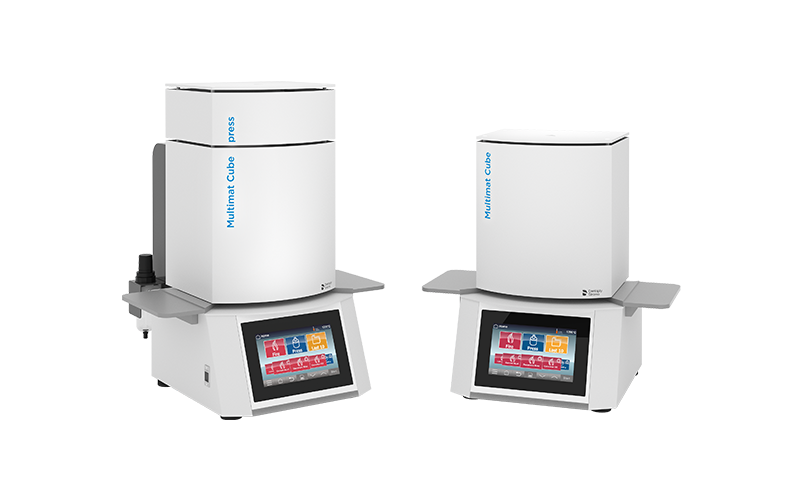

The Multimat Cube Family

Benefits

Why choose Multimat Cube?

High Performance

High temperature stability and multi-stage heating and cooling programs ensure great results when pressing and firing of common dental ceramic systems, including lithium silicate / disilicate ceramics.

Intuitive Usability

User friendly large touch display with intuitive user interface gives clear access to programs and makes it easy for everybody to use. LED status display saves time, keeping users up to date from a distance. Firing / pressing programs of Dentsply Sirona porcelain systems are pre-installed. Two USB ports for data backup, update function via USB-Stick.

Ultimate Reliability

Extensive 72h stress testing, two-year warranty and technical support ensure ongoing reliability. Intelligent pre-heating program. Secure placement of your restoration, due to the movable chamber, which avoids vibration of the firing tray. “Made in Germany” quality, approved according to international and ETL standards.

Modern Design – Fits seamlessly into the dental environment

Premium materials and minimalistic design, Glass-Touch-Display with 3 mm reinforced glass.

Technical Specifications

 Height Multimat Cube
  • closed: ≈ 475 mm
  • open: ≈ 645 mm
 Height Multimat Cube  press
  • closed: ≈ 575 mm
  • open: ≈ 745 mm
 Width

 ≈ 310 mm

 Depth

 ≈ 470 mm

 Weight
  • Multimat Cube: ≈ 26.5 kg
  • Multimat Cube press: ≈ 29 kg
 Voltage Multimat Cube
  • 100 – 115 V                                  REF 54 6028 0002
  • 220 – 230 V                                REF 54 6028 0001
 Voltage Multimat Cube press
  • 100 – 115 V                                  REF 54 6028 0012
  • 220 – 230 V                                REF 54 6028 0011
 Frequency

 50-60 Hz

 Power consumption
  • 1,580 W including vacuum pump (at 220 – 230 V)
  • 1,580 W including vacuum pump (at 100 – 115 V)

Specific technical characteristics

 Opening range, base to firing  chamber

 100 mm

 Closing time, firing chamber

 ≈ 19 seconds

 Ambient temperature, operation

 +5 °C to +40 °C, ideal: +20 °C

 Ambient temperature, storage

 0 °C to +40 °C

 Humidity

 80% relative humidity at temperatures up to 31 °C or linear decrease to 50% at +40 °C

 Environment

 Indoors only, on a non-flammable surface

 Heating Element

 Quartz muffle with an openly radiating filament

 Maximum firing temperature

 1200 °C

 Heating rate

 Up to 120 °C / min

 Pressure in pressing mode

 0 to 3 bar, monitored

 Display

  • 7“ TFT LCD display with projective capacitive touch,
  • 3 mm thermally hardened flat glass, 800 × 480 pixels

 Accessories

  • REF D 03 532 803 Silver wire test
  • REF D 03 002 220 VD Vacuum pump, 230 V / 50 Hz including filter



Technical specifications may change without notice
